V5 A/C compressor teardown / re-seal...

Collapse
X
Collapse
  •
  • Page 5

  • V5 A/C compressor tear down / re-seal...


    Out of there!
    Click image for larger version Name: V5_d&a_ (30).jpg Views: 1 Size: 173.3 KB ID: 424823

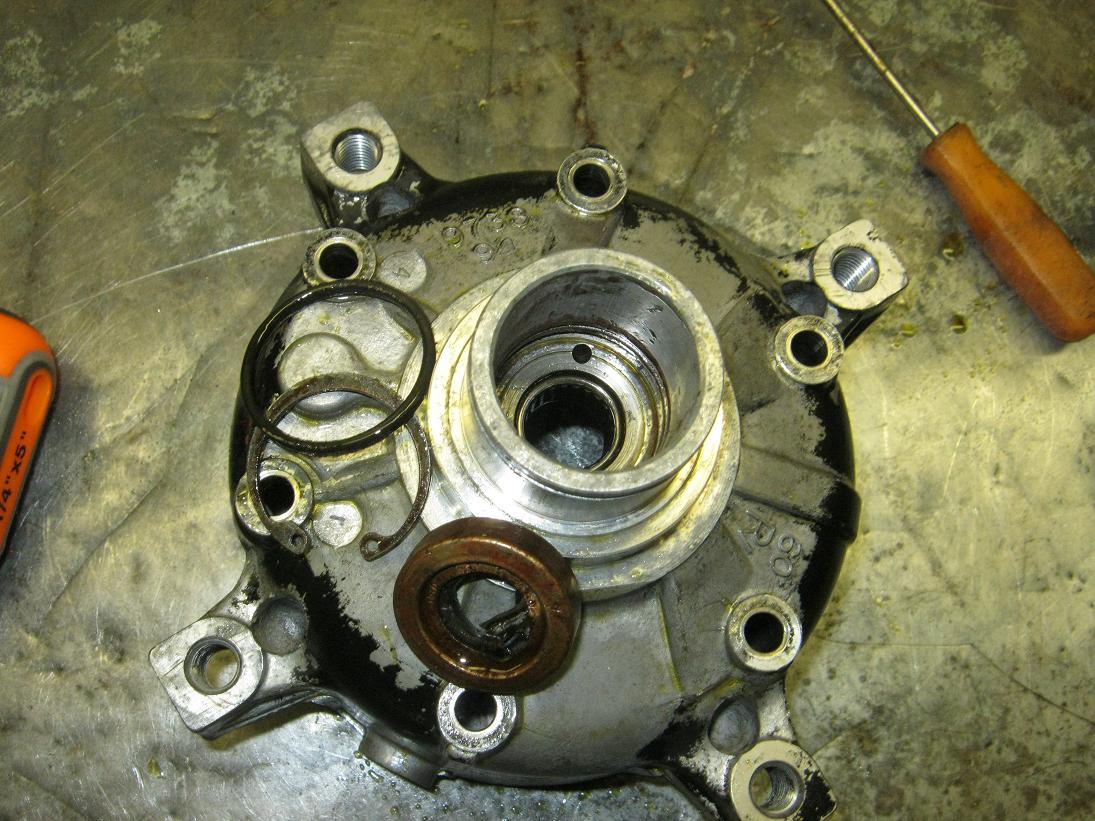

    Next, clean the housings. Pay close attention to the areas where the o-rings slide in and seat. These areas must be free of all dirt, pitting, and damage. The roller bearing must be blown dry with air and immediately oiled before placing the cleaned housings in a clean place.
    Click image for larger version Name: V5_d&a_ (31).jpg Views: 1 Size: 126.0 KB ID: 424824

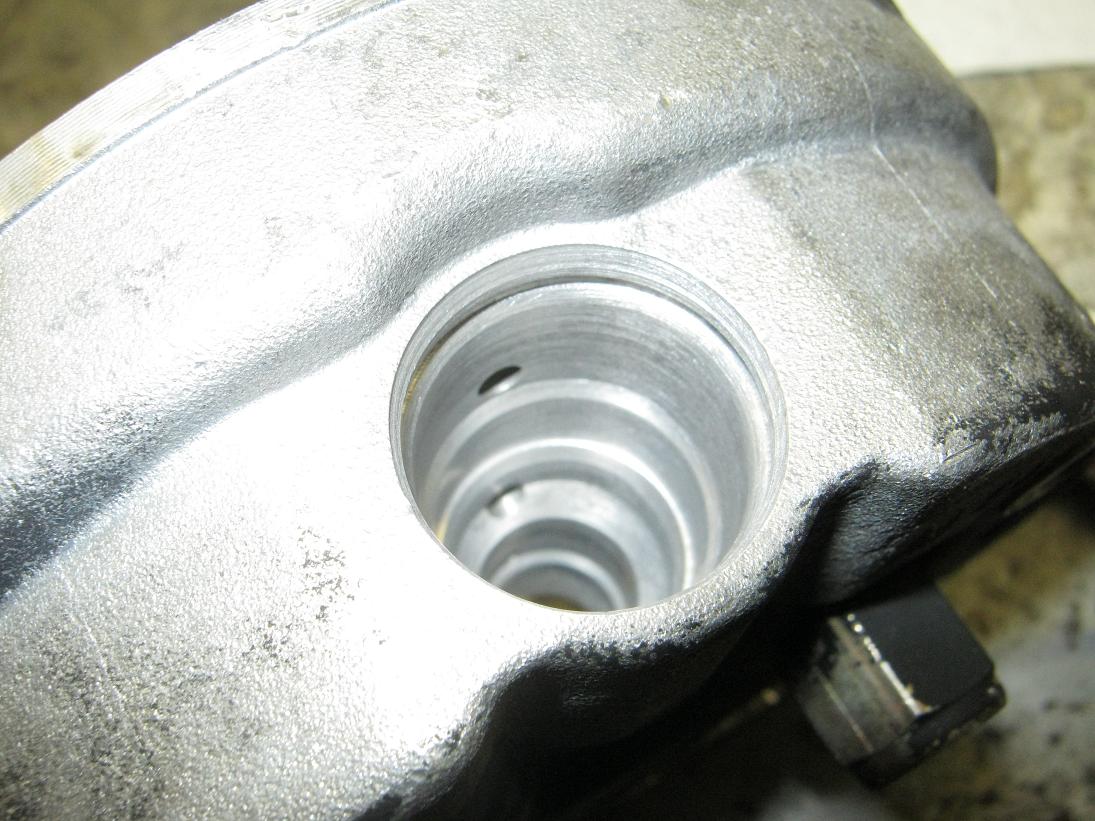

    On the rear housing, the compensating valve bore may be corroded like this.
    Click image for larger version Name: V5_d&a_ (32).jpg Views: 1 Size: 92.9 KB ID: 424825

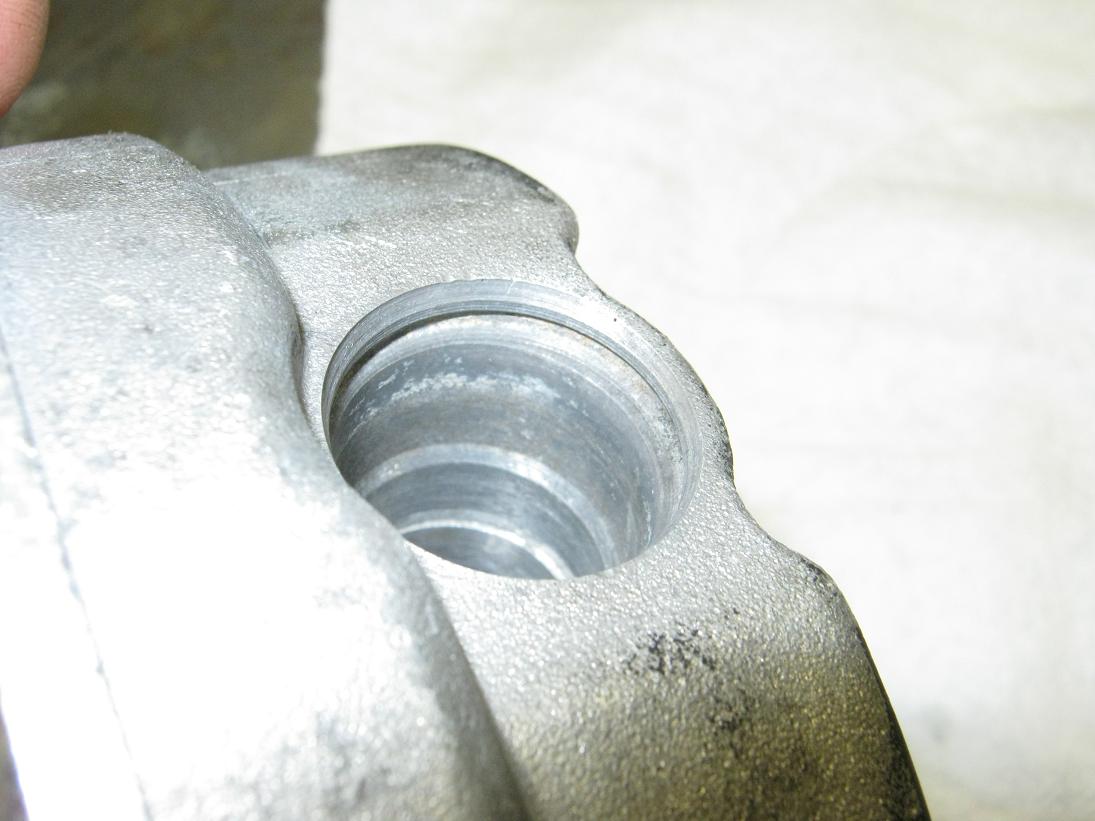

    Use a tube brush, then a tube brush wrapped in Scotch-Brite to clean this bore.
    Click image for larger version Name: V5_d&a_ (33).jpg Views: 1 Size: 150.4 KB ID: 424826

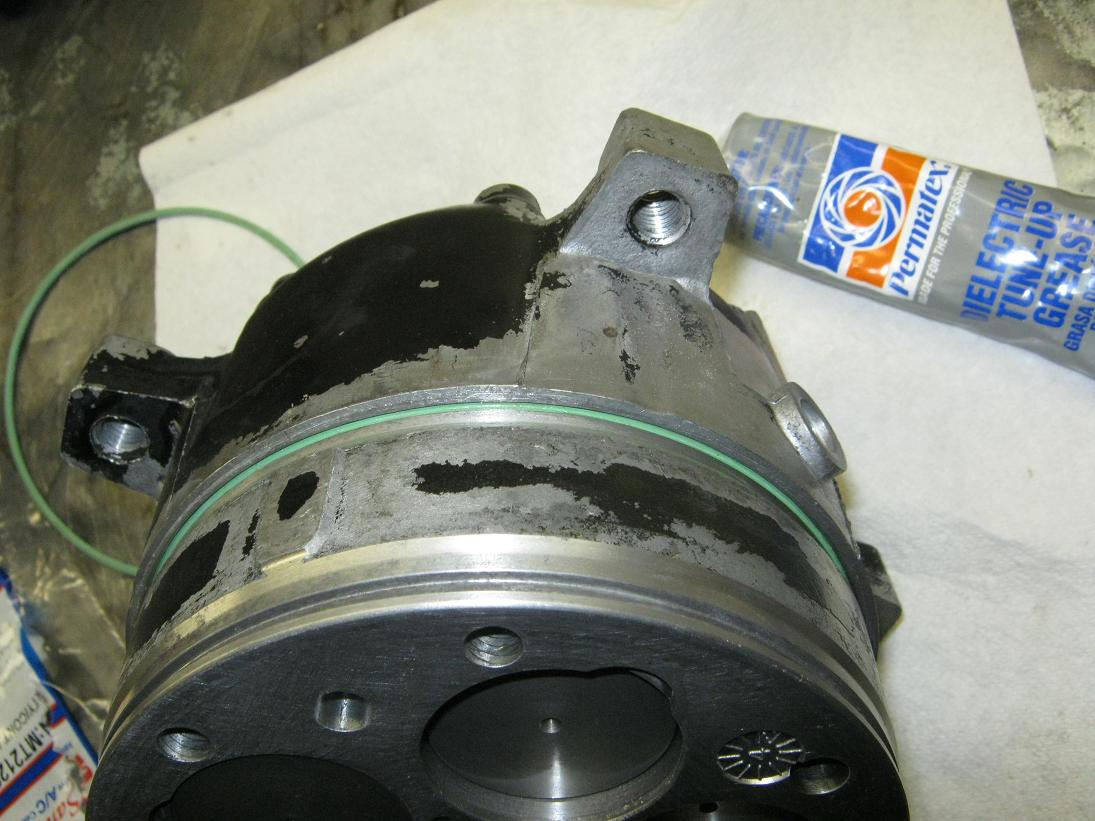

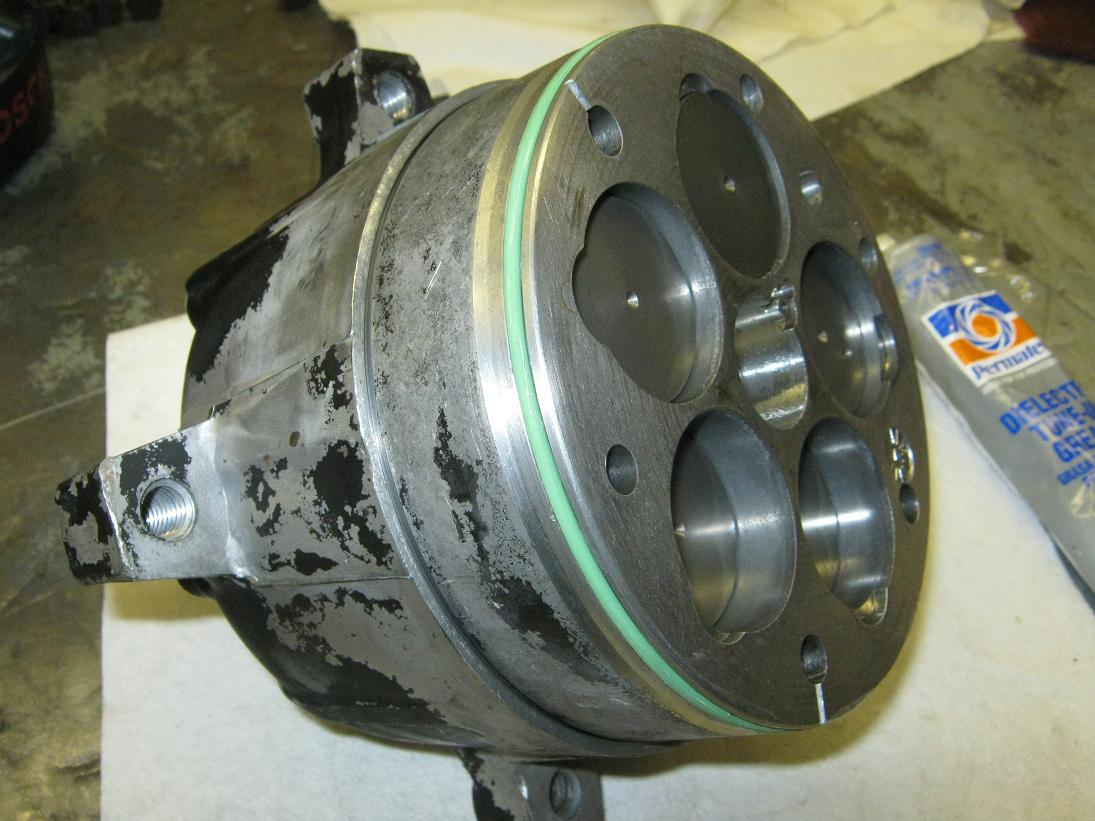

    Place the new green o-rings on the barrel,lube them with silicone paste. Then install the thrust bearing and front housing.
    Click image for larger version Name: V5_d&a_ (34).jpg Views: 1 Size: 125.4 KB ID: 424827

    Housing should push on by hand. If not, the dowel pin may not be lined up.
    Click image for larger version Name: V5_d&a_ (35).jpg Views: 1 Size: 127.7 KB ID: 424828
    ← Page 4
    Page 6 →
    Tags: None
    • Tbay99Venture
      #5
      Tbay99Venture commented
      07-27-2011, 11:12 PM
      Editing a comment
      +10 on the problem aligning the pistons if they pop out. I did that once with a Sanden. My biggest problem comes back to keeping everything clean. He makes it look easy, for some of us that's 100% attention to keep things clean. I think 60degreesBelow0 mentioned some nitrogen flushing tips, maybe I'm confusing posts. That would be helpful to link from this.
    • bszopi
      #6
      bszopi commented
      07-29-2011, 06:57 PM
      Editing a comment
      Pics are now hosted here. Clicking on the pictures will show the full size version, if needed. I also split it up into multiple pages so make load time faster, as well as making it easier to follow.
    • davida1_hiwaay_net
      #7
      davida1_hiwaay_net commented
      05-17-2013, 01:37 PM
      Editing a comment
      Thanks for hosting the pictures here! My home computer has just a limited number of connections it can handle.
