    It seems that ALL the cruise control stalks you find at the JY nowadays are non-working. The Cruise switch doesn't work. Tired of paying $40 for a new stalk, I decided to dismantle and attempt repairs to what I had.

    The stalk is glued together and there will be some minor cosmetic damage during the dis-assembly, but if you file down the burs before gluing it back together it is not serious.

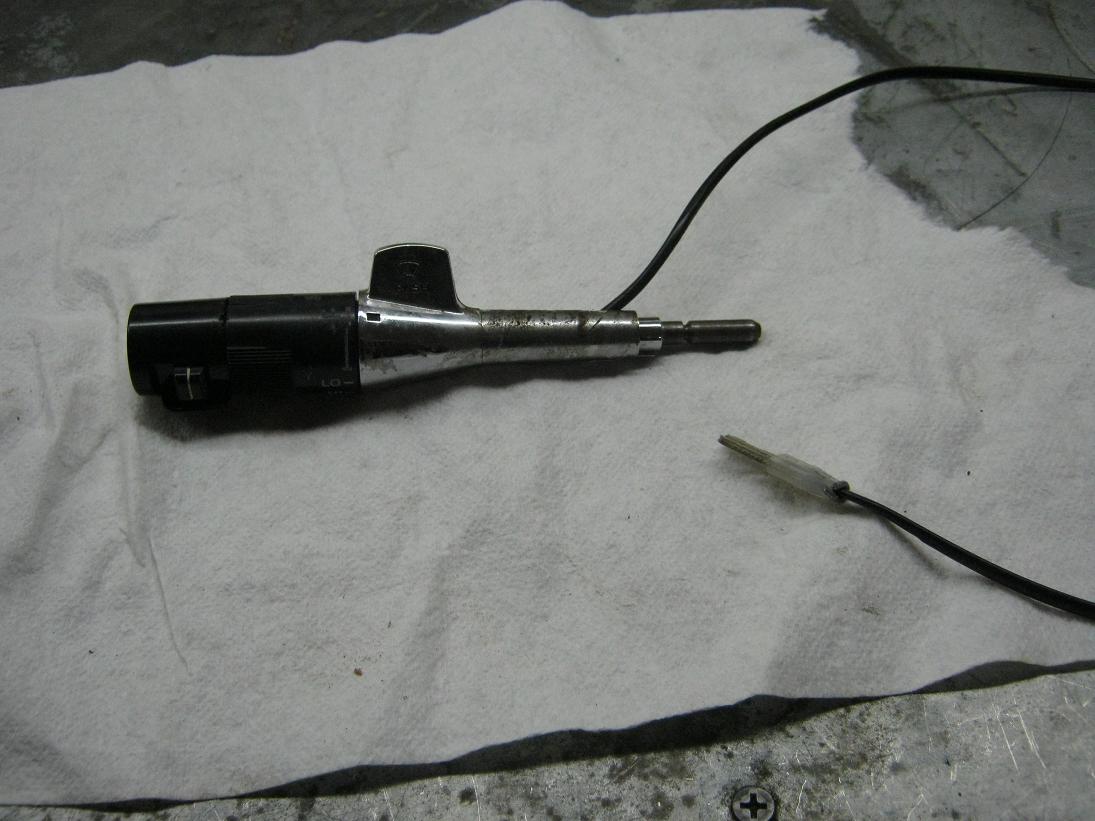

    This is the stalk I am going to repair.
    Click image for larger version

Name:	Cruise_stalk_1.JPG
Views:	1
Size:	111.6 KB
ID:	424859

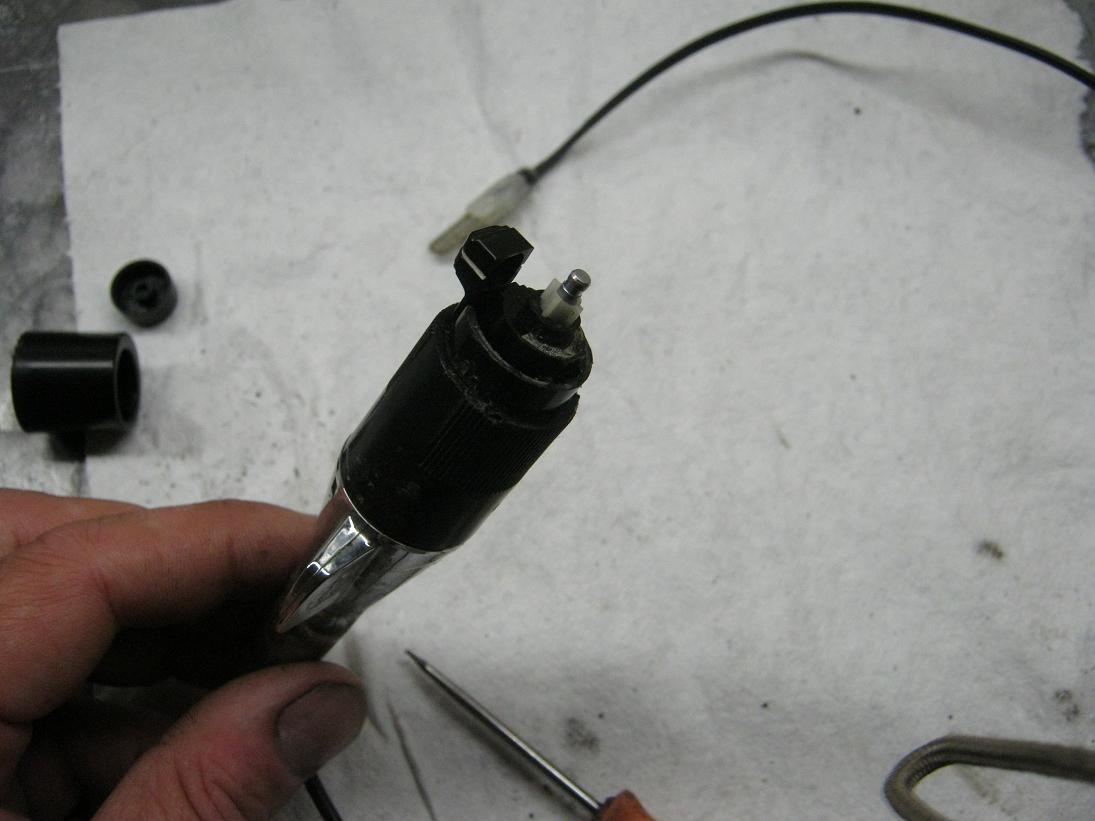

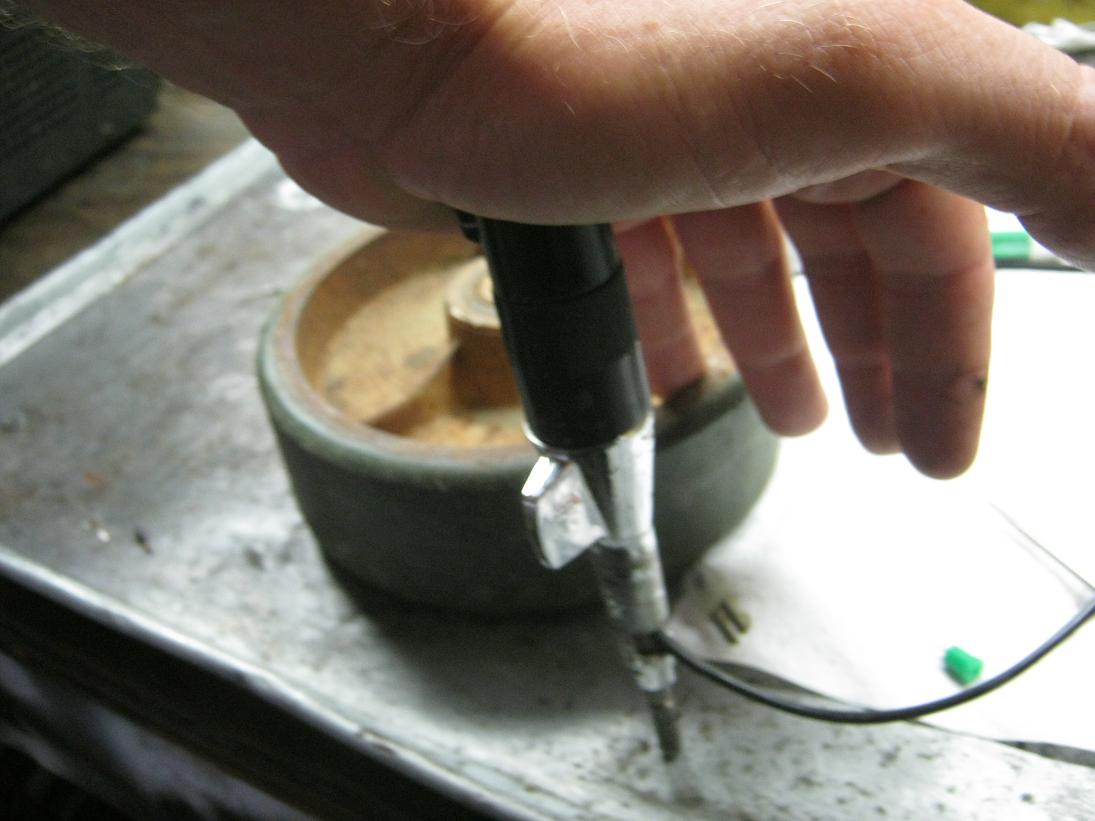

    First, separate it at the joint. I was able to grip a pair of wire stripper pliers into the joint and force the stalk apart. Slide out the switch by feeding the cable into the shaft.
    Click image for larger version

Name:	Cruise_stalk_2.JPG
Views:	1
Size:	99.5 KB
ID:	424860

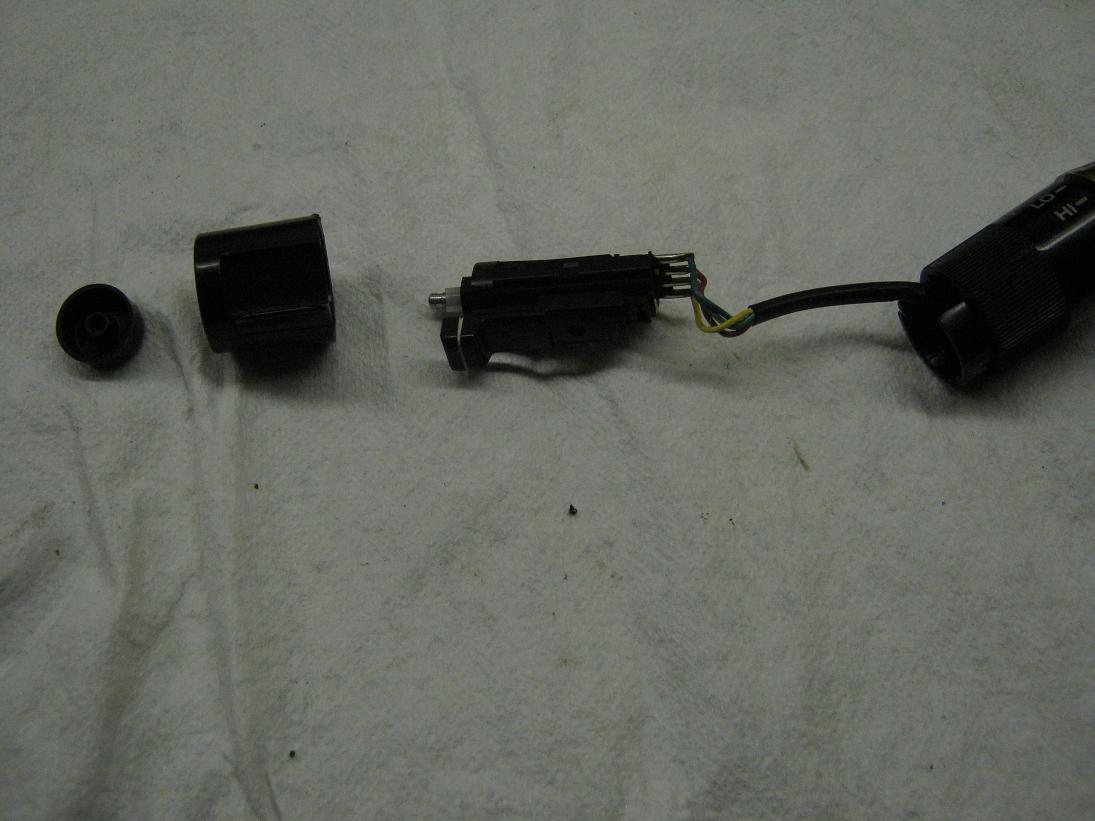

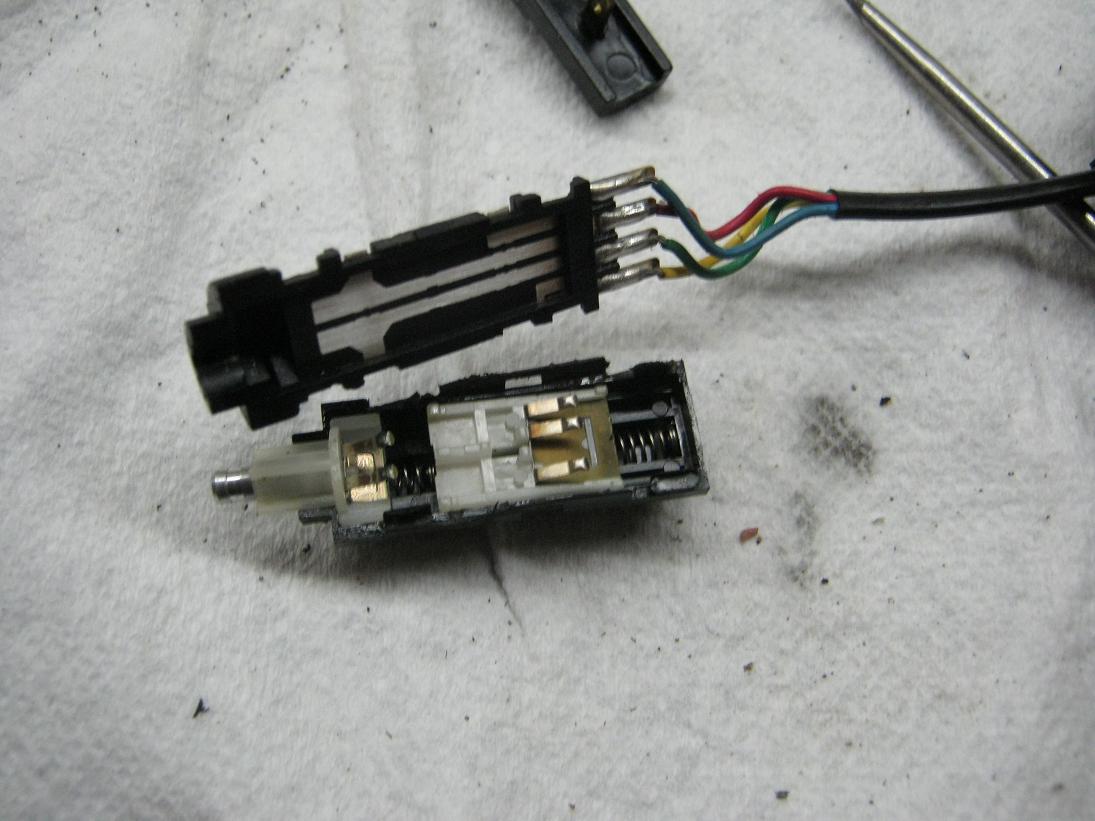

    Pull off the outer end of the stalk housing. The SET button cap will pop out.
    Click image for larger version

Name:	Cruise_stalk_3.JPG
Views:	1
Size:	96.2 KB
ID:	424861

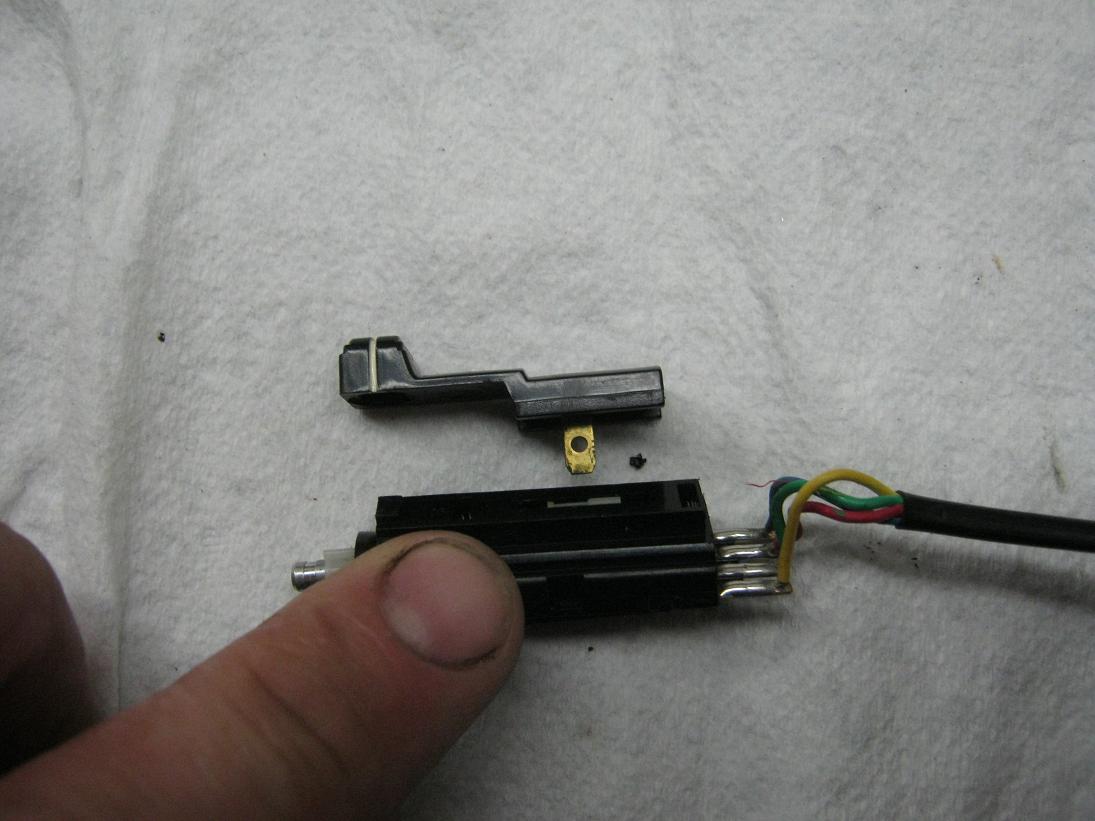

    Carefully slide out the OFF/ON R/A lever.
    Click image for larger version

Name:	Cruise_stalk_4.JPG
Views:	1
Size:	102.1 KB
ID:	424862

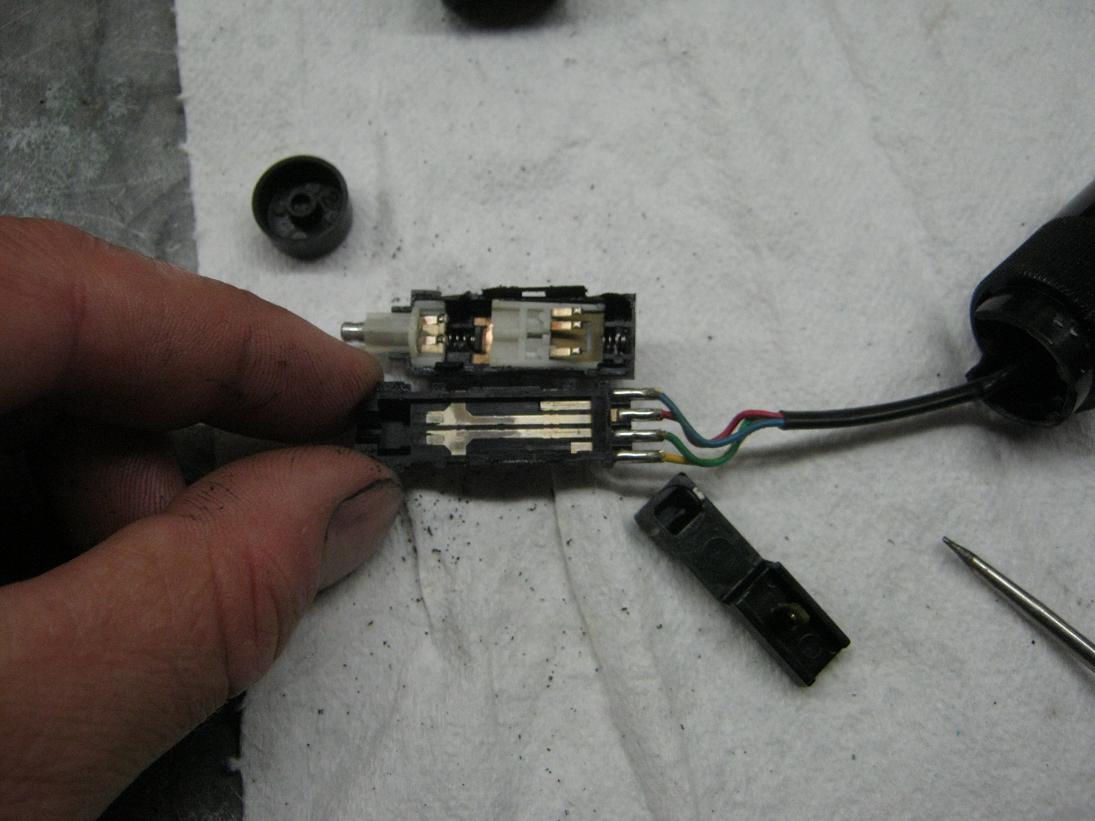

    The switch is held together by clips AND 4 plastic welded areas. I filed away the welded areas and carefully lifted the clips. You can see the dark discolored areas on the contacts.
    Click image for larger version

Name:	Cruise_stalk_5.JPG
Views:	1
Size:	99.5 KB
ID:	424863

    Cleaned the contacts on the housing, and bent the movable contacts up so they will have more pressure on the circuit board. Put a little bit of dielectric grease (NON HARDENING) on the slide.
    Click image for larger version

Name:	Cruise_stalk_6.JPG
Views:	1
Size:	108.5 KB
ID:	424864

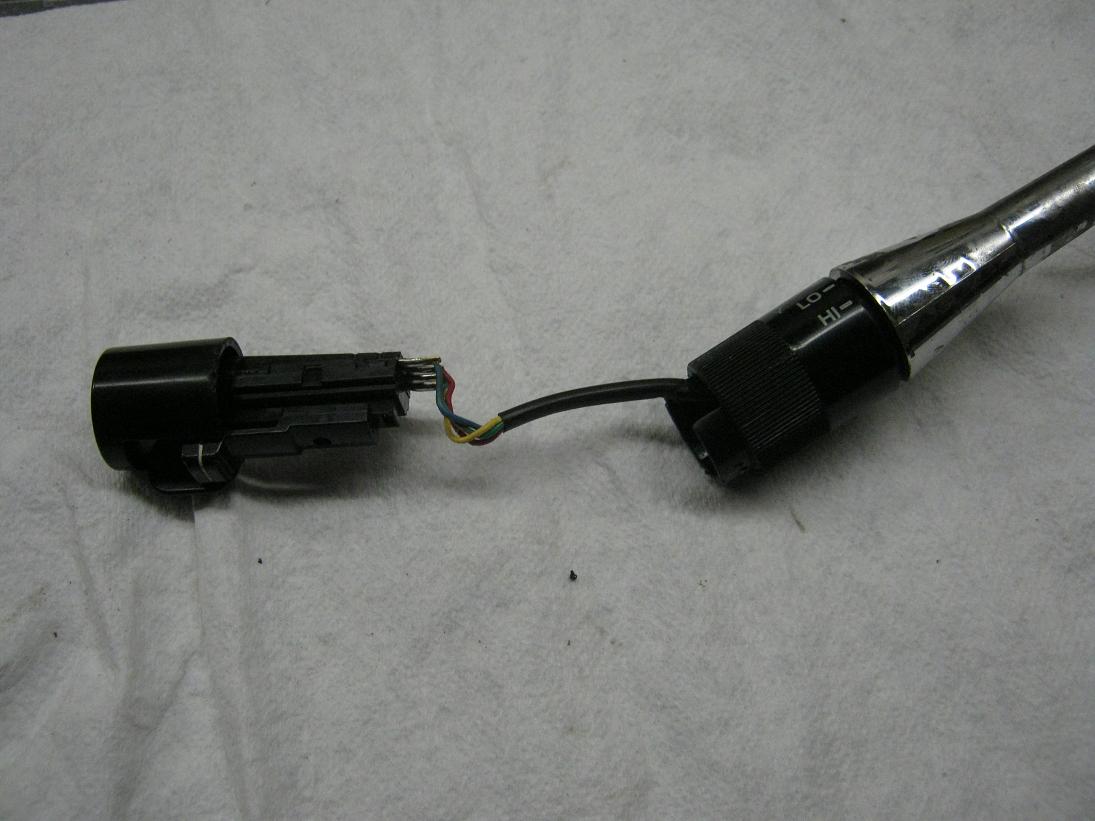

    Snap the switch back together and insert it into the stalk housing. Carefully slide the cable through the shaft.
    Click image for larger version

Name:	Cruise_stalk_7.JPG
Views:	1
Size:	82.0 KB
ID:	424865

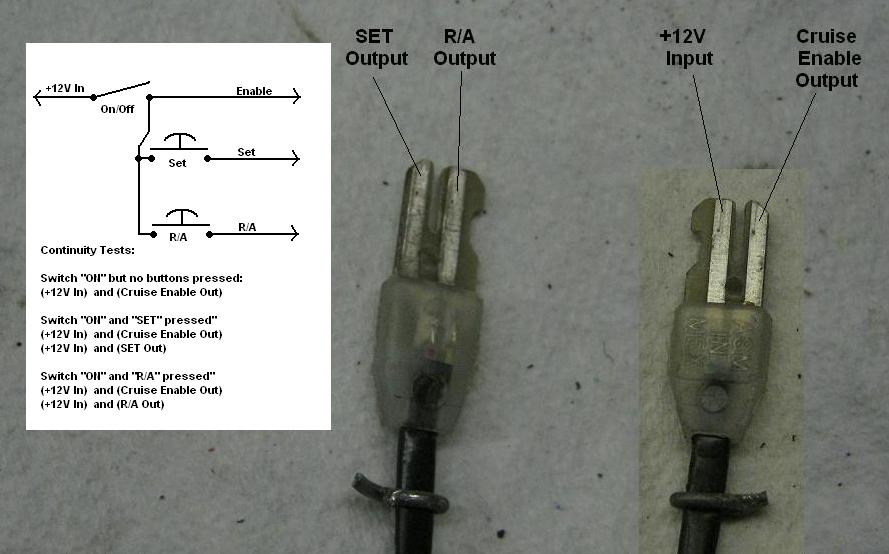

    At this time, it would be wise to make a functional test with ohm meter.
    Click image for larger version

Name:	Cruise_stalk_11.JPG
Views:	2
Size:	59.7 KB
ID:	424866

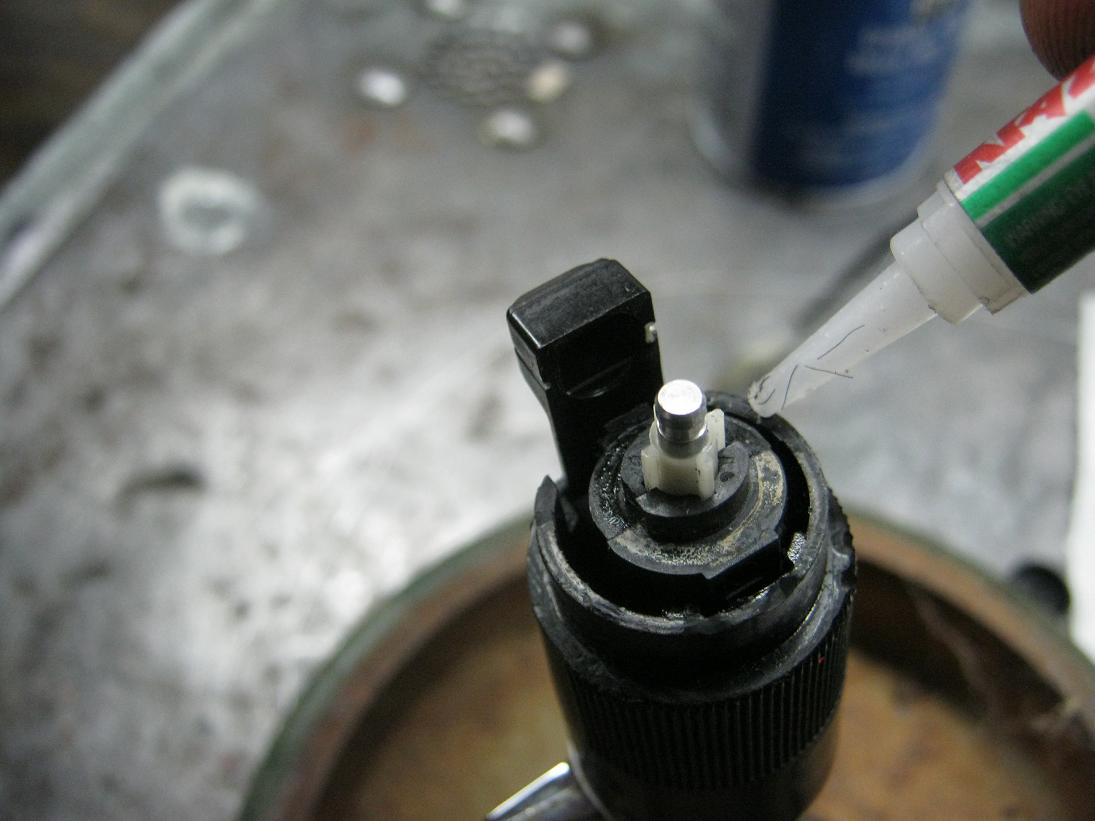

    Now, apply CA glue, carefully, to only this small area of the stalk.
    Click image for larger version

Name:	Cruise_stalk_8.JPG
Views:	2
Size:	85.4 KB
ID:	424867

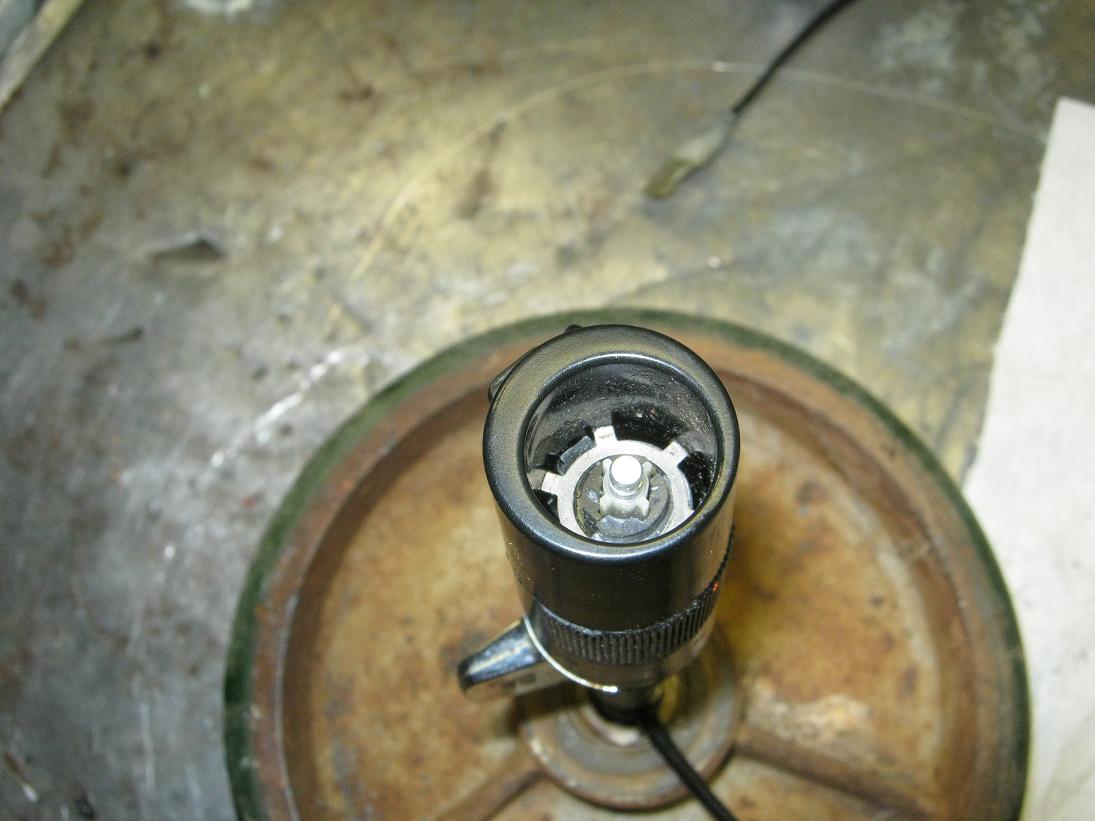

    Assemble the end of the stalk and press HARD down to fix the end housing to the stalk.
    Click image for larger version

Name:	Cruise_stalk_9.JPG
Views:	2
Size:	88.3 KB
ID:	424868

    Should look like this. Snap the SET button cap onto the switch and that is the repair! You just saved $40.
    Click image for larger version

Name:	Cruise_stalk_10.JPG
Views:	2
Size:	95.5 KB
ID:	424869

    Hope this helps! Some day I will do a writeup on the cruise servo repair, for when the cruise will engage but loses speed.

    Thanks!
    David
