  • V5 A/C compressor tear down / re-seal...

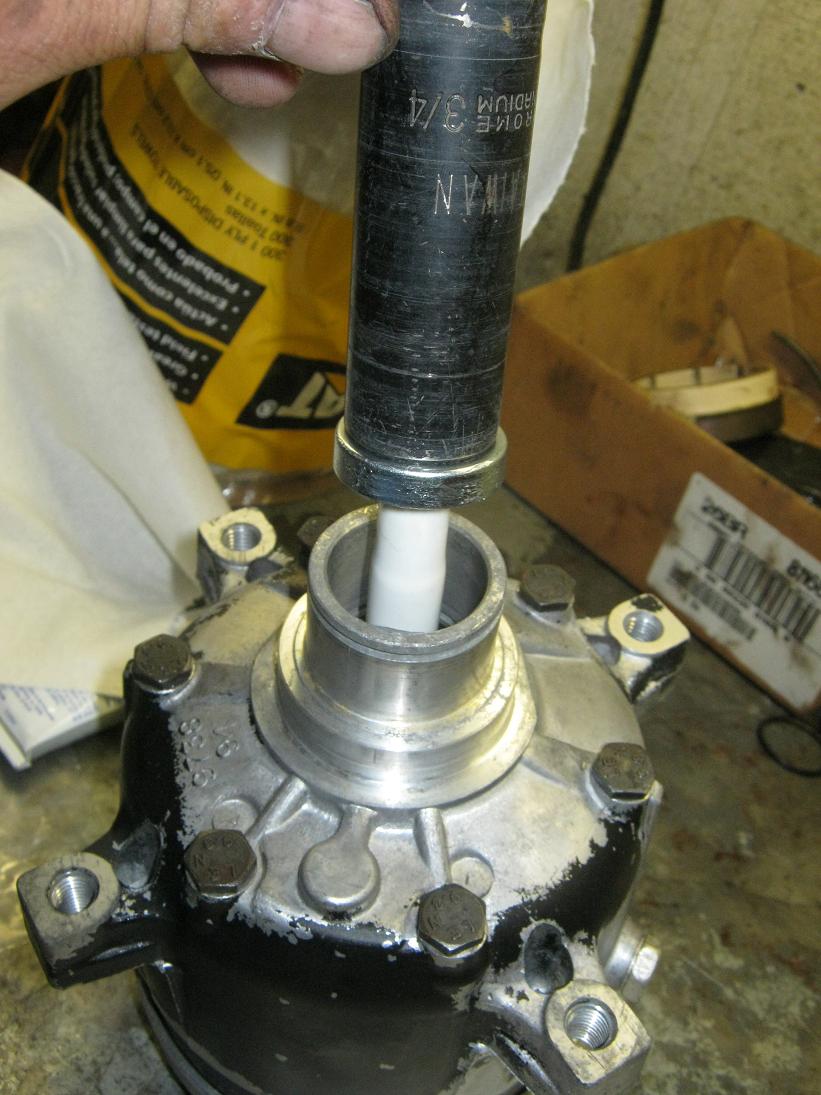

    Lube it with silicone paste, and install the seal, LIP TOWARDS COMPRESSOR, using a deep socket. It should press in smoothly by hand.
    Click image for larger version Name: V5_d&a_ (49).jpg Views: 1 Size: 124.7 KB ID: 424841

    Should look like this:
    Click image for larger version Name: V5_d&a_ (50).jpg Views: 1 Size: 130.4 KB ID: 424842

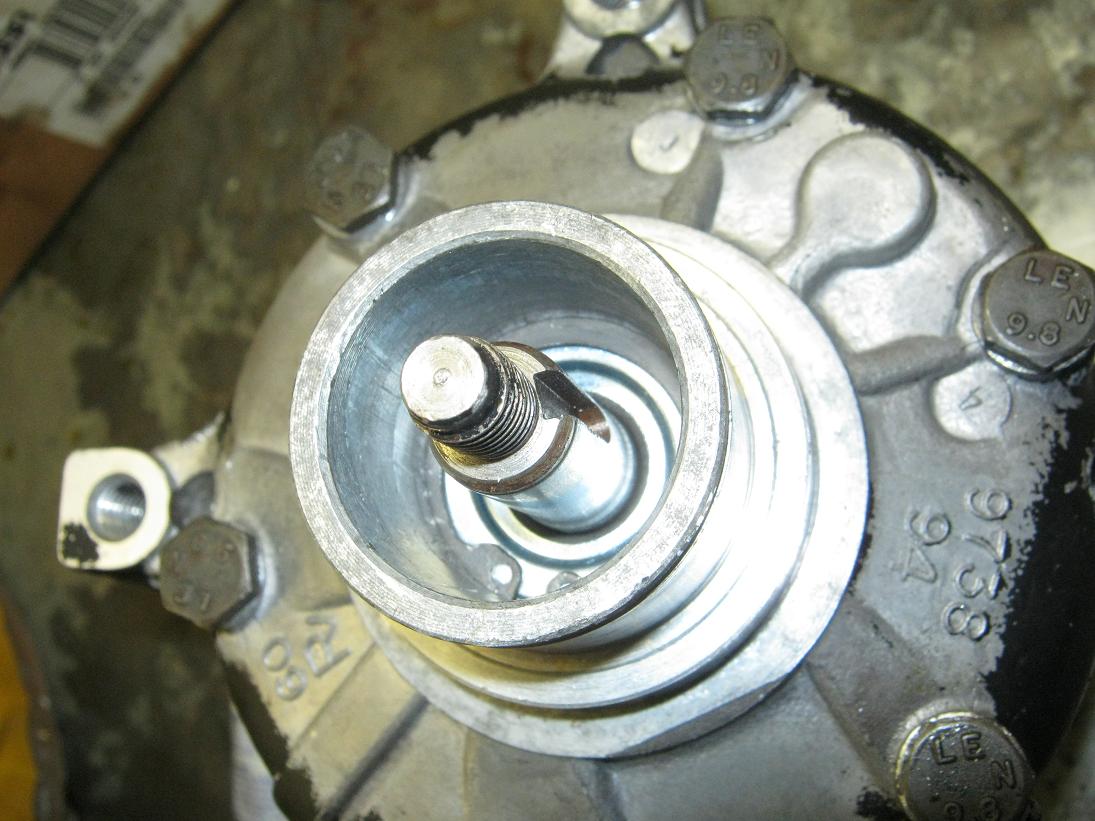

    Remove the thimble and install the snap-ring. Sealing complete!
    Click image for larger version Name: V5_d&a_ (51).jpg Views: 1 Size: 124.2 KB ID: 424843

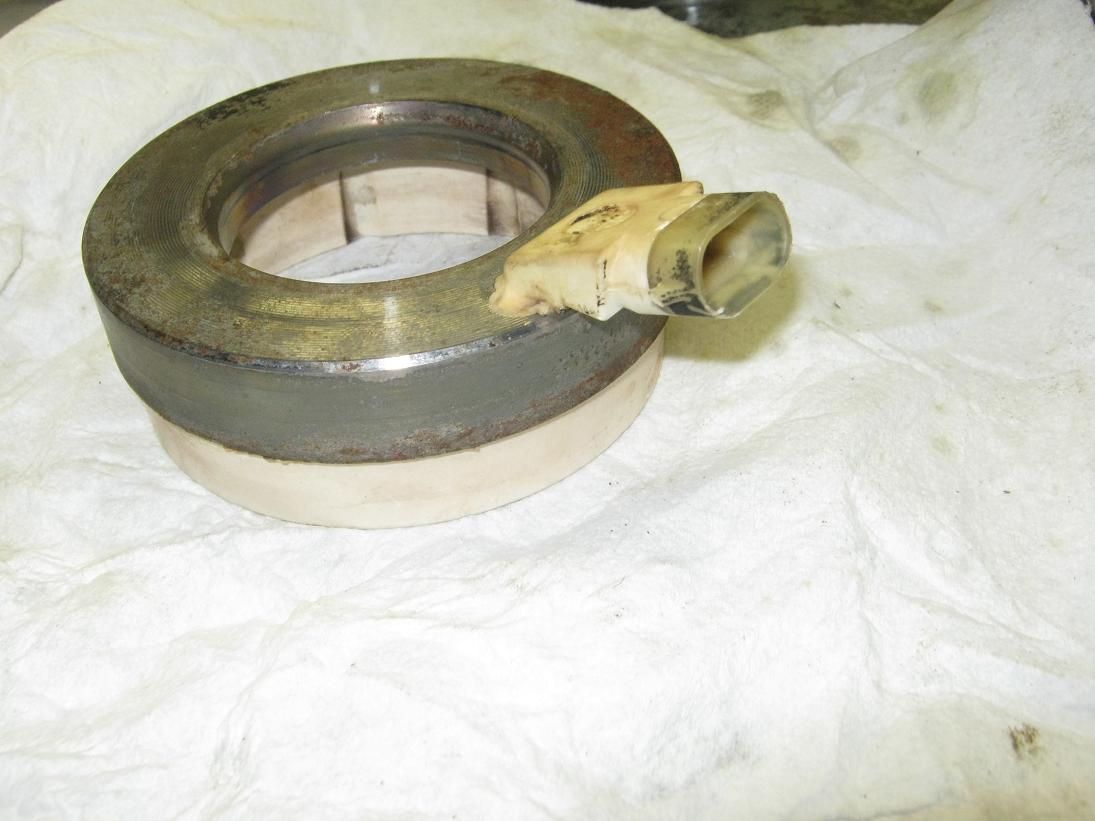

    Clean and inspect the electromagnet coil. No cracks or broken pins in the connector!
    Click image for larger version Name: V5_d&a_ (52).jpg Views: 1 Size: 97.9 KB ID: 424844

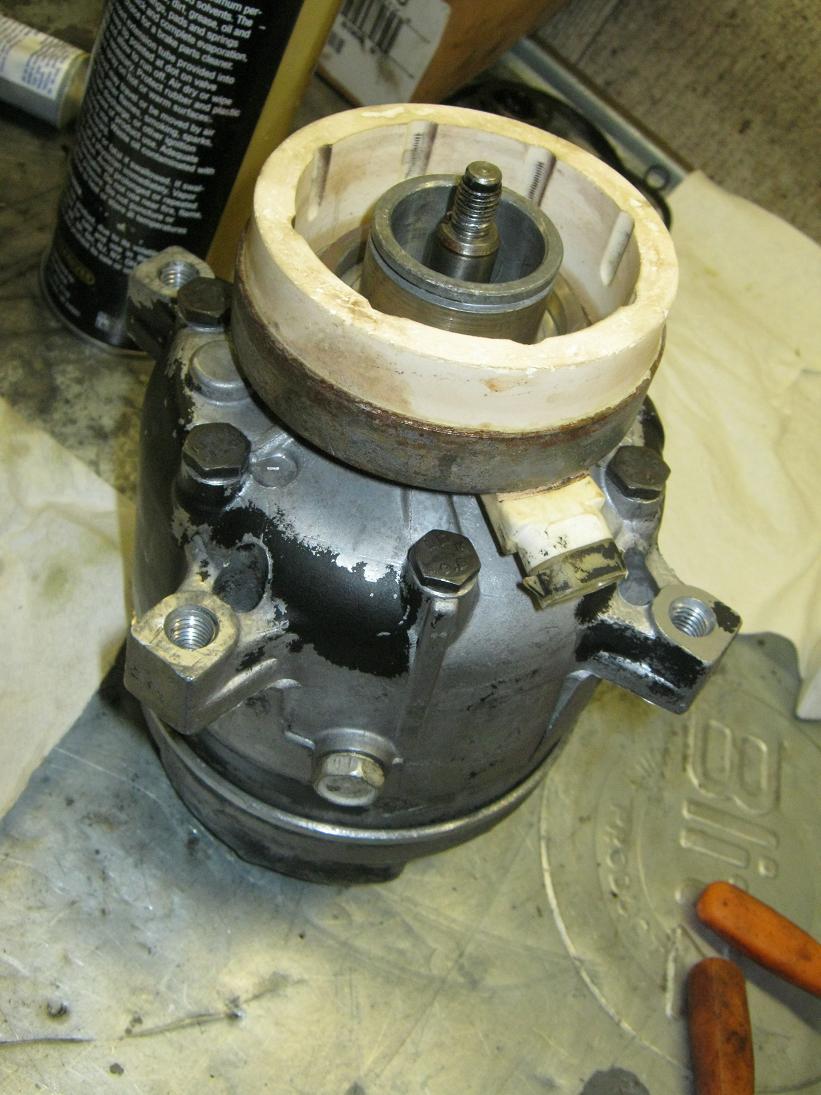

    Set it on the compressor, lining the connector up with the flat spot where it was originally aligned.
    Click image for larger version Name: V5_d&a_ (53).jpg Views: 1 Size: 129.4 KB ID: 424845

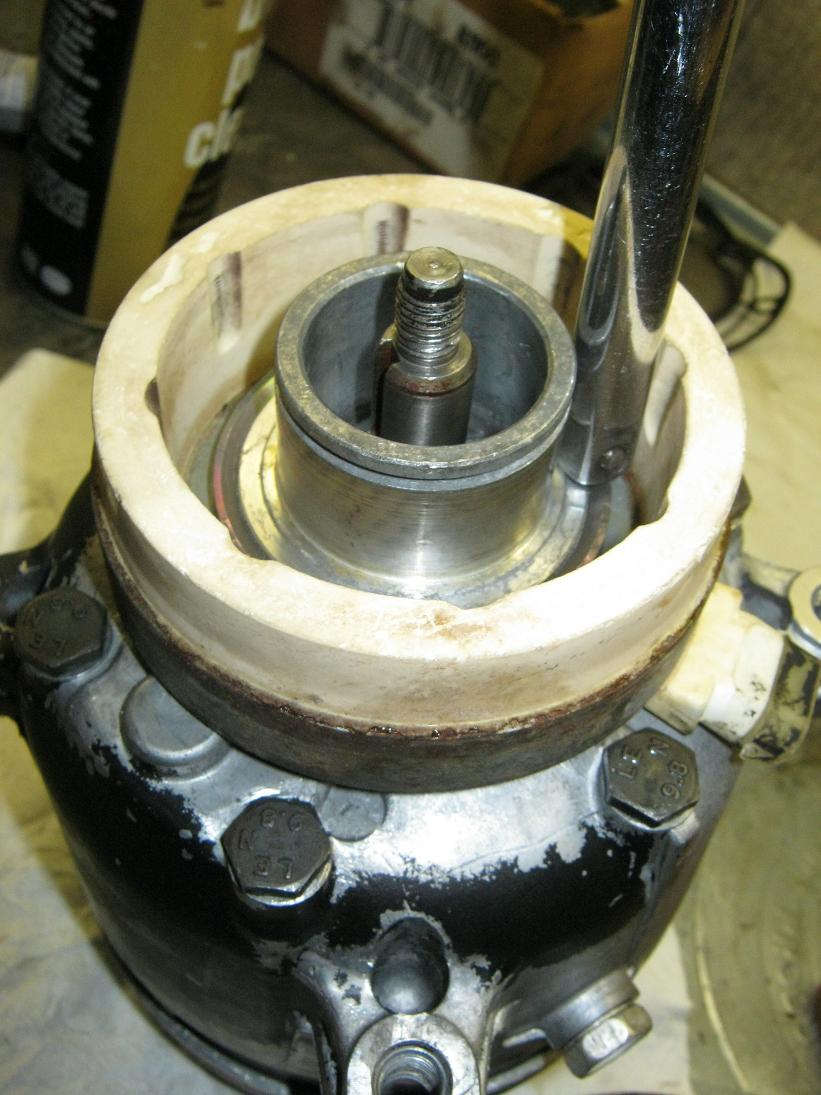

    Drive it down, using a punch or extension.
    Click image for larger version Name: V5_d&a_ (54).jpg Views: 1 Size: 121.9 KB ID: 424846
    ← Page 7
    Page 9 →
    Tags: None
    • Tbay99Venture
      #5
      Tbay99Venture commented
      07-27-2011, 11:12 PM
      Editing a comment
      +10 on the problem aligning the pistons if they pop out. I did that once with a Sanden. My biggest problem comes back to keeping everything clean. He makes it look easy, for some of us that's 100% attention to keep things clean. I think 60degreesBelow0 mentioned some nitrogen flushing tips, maybe I'm confusing posts. That would be helpful to link from this.
    • bszopi
      #6
      bszopi commented
      07-29-2011, 06:57 PM
      Editing a comment
      Pics are now hosted here. Clicking on the pictures will show the full size version, if needed. I also split it up into multiple pages so make load time faster, as well as making it easier to follow.
    • davida1_hiwaay_net
      #7
      davida1_hiwaay_net commented
      05-17-2013, 01:37 PM
      Editing a comment
      Thanks for hosting the pictures here! My home computer has just a limited number of connections it can handle.
