  • Page 6

  • V5 A/C compressor tear down / re-seal...

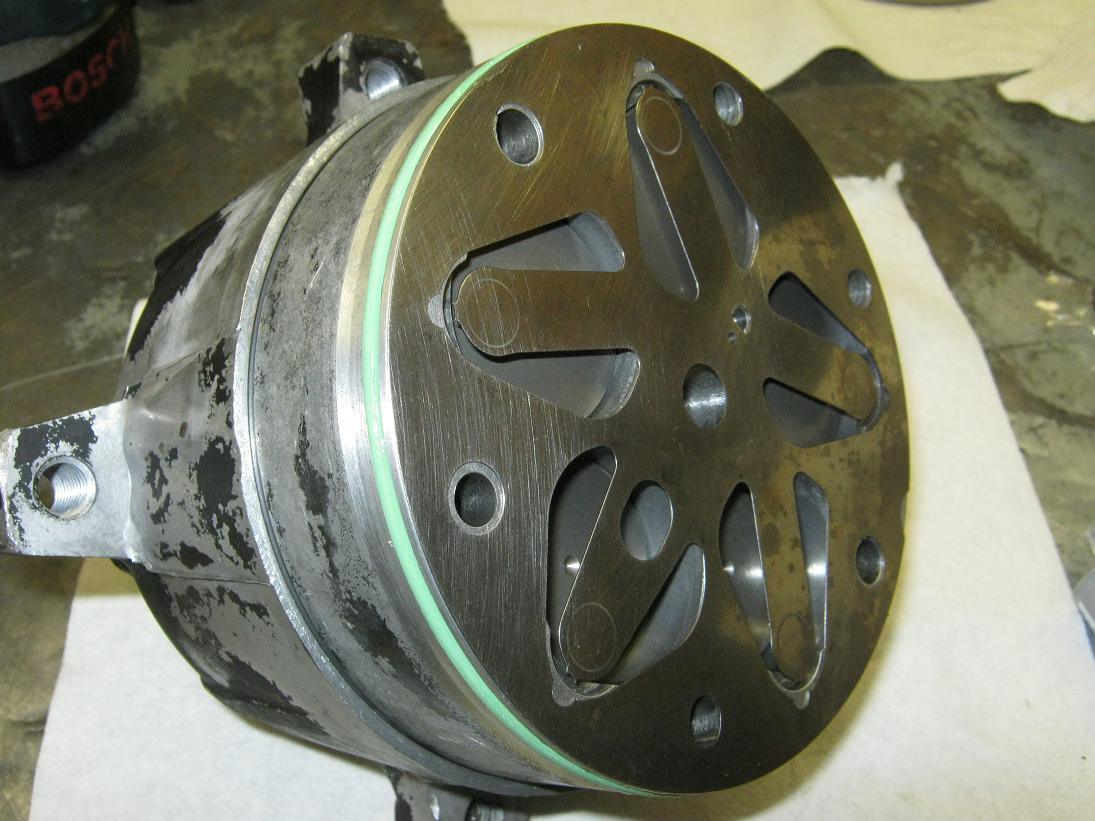

    Now set the inlet reed on the barrel. It only fits one way.
    Click image for larger version Name: V5_d&a_ (36).jpg Views: 1 Size: 129.3 KB ID: 424829

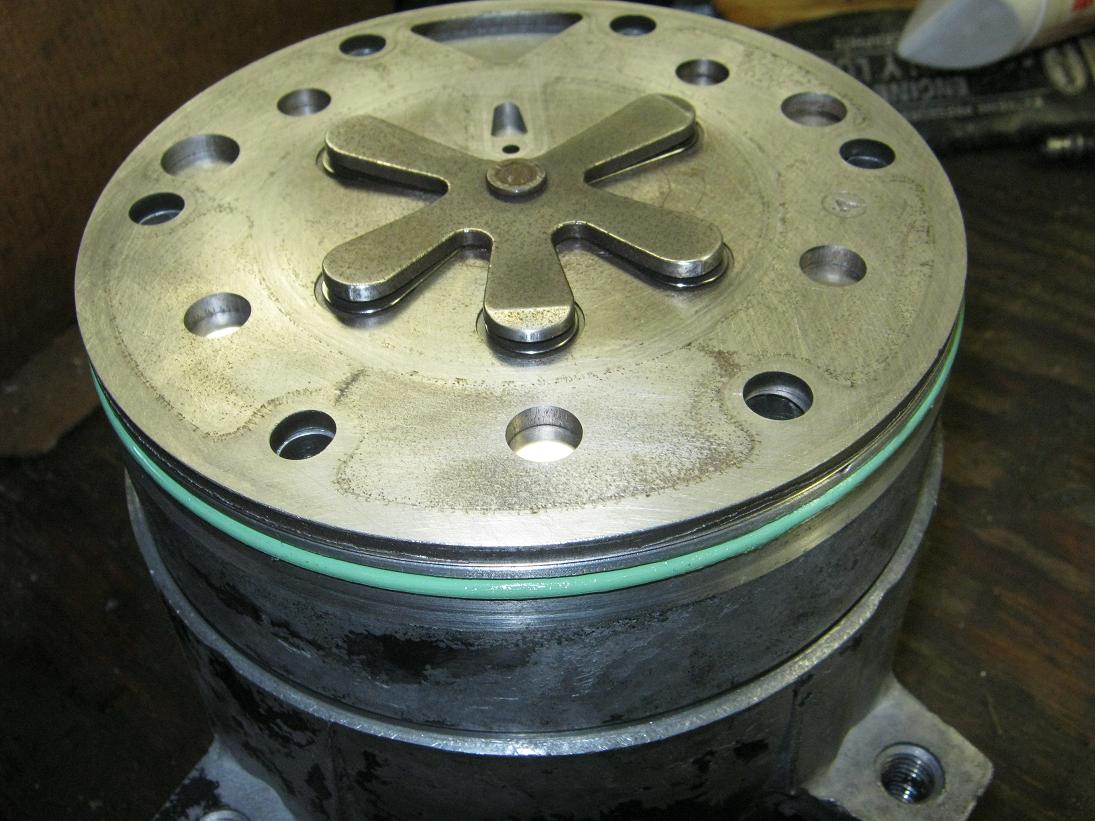

    Now the valve plate. The holes in the center only line up one way.
    Click image for larger version Name: V5_d&a_ (37).jpg Views: 1 Size: 136.8 KB ID: 424830

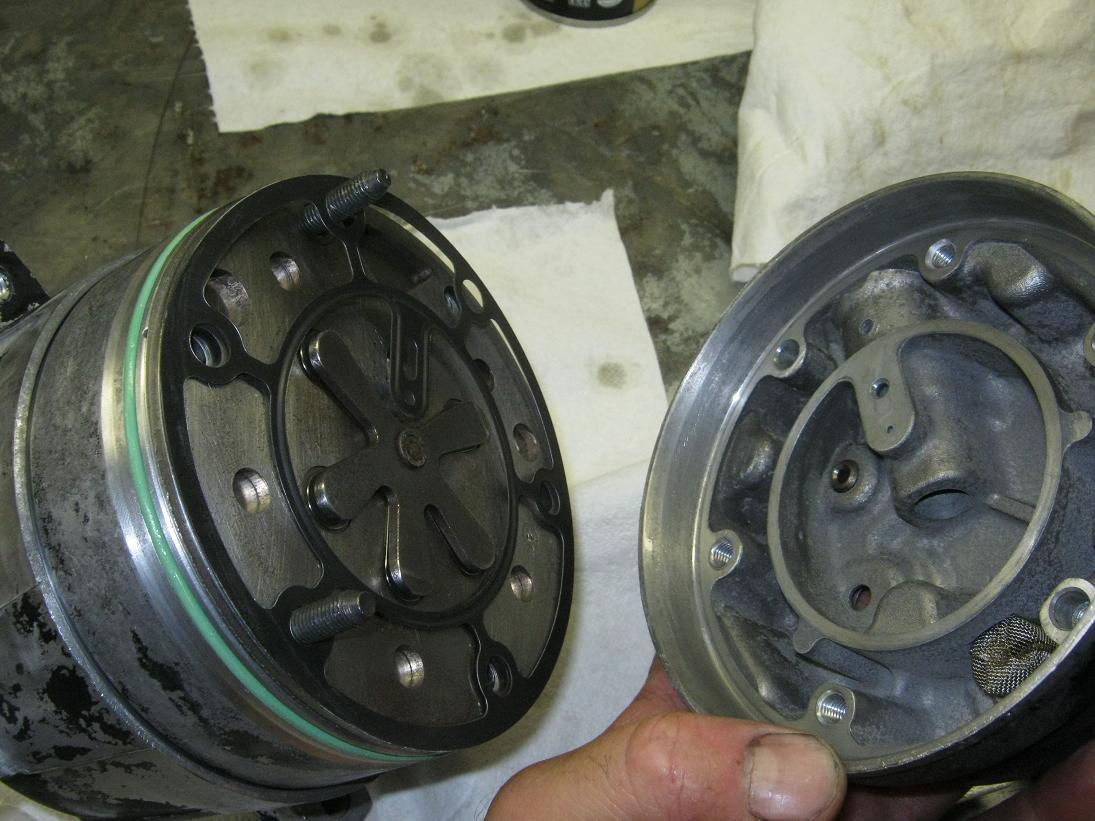

    Insert 2 housing bolts. One must be in the SMALLEST hole in the barrel and plates. This is the alignment bolt for assembly. Install the new gasket over the bolts.
    Click image for larger version Name: V5_d&a_ (38).jpg Views: 1 Size: 133.3 KB ID: 424831

    Start the 2 bolts by hand. Press the housing together BY HAND allowing the bolts to slide and guide the segments of the compressor. Do NOT draw it together with the bolts.
    Click image for larger version Name: V5_d&a_ (40).jpg Views: 1 Size: 130.8 KB ID: 424832

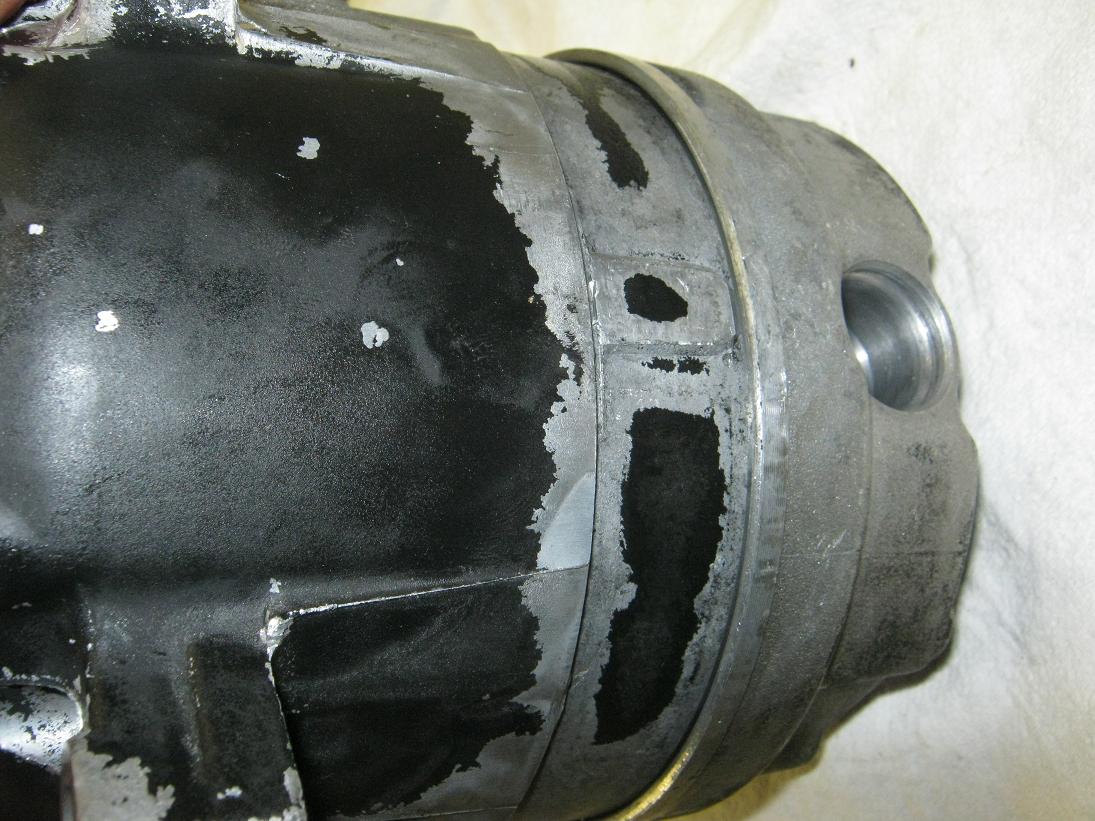

    Should push together like this:
    Click image for larger version Name: V5_d&a_ (39).jpg Views: 1 Size: 152.5 KB ID: 424833

    Put thread sealant on the undersides of the bolt heads, and on the threads. Use it very sparingly.
    Click image for larger version Name: V5_d&a_ (41).jpg Views: 1 Size: 111.3 KB ID: 424834
    ← Page 5
    Page 7 →
    Tags: None
      • Tbay99Venture
        #5
        Tbay99Venture commented
        07-27-2011, 10:12 PM
        Editing a comment
        +10 on the problem aligning the pistons if they pop out. I did that once with a Sanden. My biggest problem comes back to keeping everything clean. He makes it look easy, for some of us that's 100% attention to keep things clean. I think 60degreesBelow0 mentioned some nitrogen flushing tips, maybe I'm confusing posts. That would be helpful to link from this.
        • bszopi
          #6
          bszopi commented
          07-29-2011, 05:57 PM
          Editing a comment
          Pics are now hosted here. Clicking on the pictures will show the full size version, if needed. I also split it up into multiple pages so make load time faster, as well as making it easier to follow.
          • davida1_hiwaay_net
            #7
            davida1_hiwaay_net commented
            05-17-2013, 12:37 PM
            Editing a comment
            Thanks for hosting the pictures here! My home computer has just a limited number of connections it can handle.
