  • Page 7

  • V5 A/C compressor tear down / re-seal...

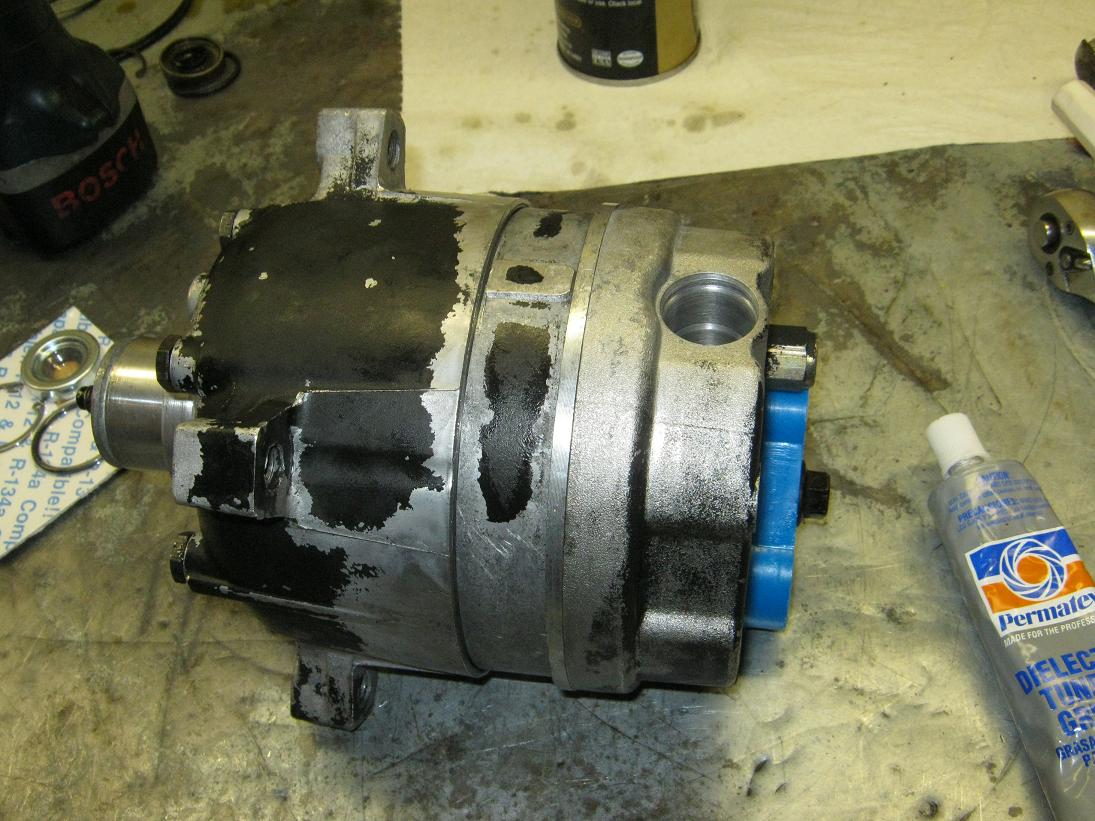

    Install and tighten bolts, and your compressor should look like this.
    Click image for larger version Name: V5_d&a_ (42).jpg Views: 1 Size: 153.8 KB ID: 424835

    Remove old o-rings from compensating element.
    Click image for larger version Name: V5_d&a_ (43).jpg Views: 1 Size: 89.3 KB ID: 424836

    Install new o-rings on the compensating element.
    Click image for larger version Name: V5_d&a_ (44).jpg Views: 1 Size: 127.1 KB ID: 424837

    Lube it with silicone paste and pop it in! Then place the snap ring in place.
    Click image for larger version Name: V5_d&a_ (45).jpg Views: 1 Size: 149.0 KB ID: 424838

    Now for the shaft seal. First, install the o-ring into the spotlessly-clean compressor neck.
    Click image for larger version Name: V5_d&a_ (46).jpg Views: 1 Size: 139.7 KB ID: 424839

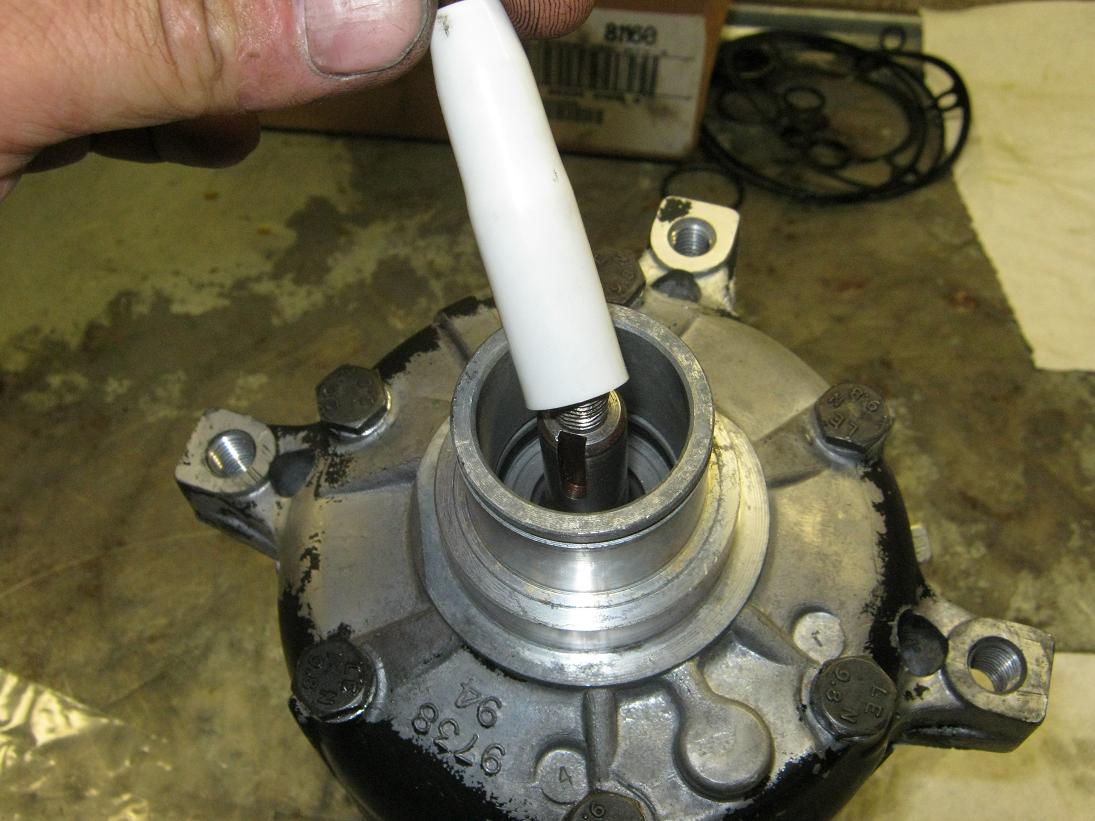

    Now, take the CLEAN shaft seal thimble and install on the shaft.
    Click image for larger version Name: V5_d&a_ (48).jpg Views: 1 Size: 123.3 KB ID: 424840
    ← Page 6
    Page 8 →
    Tags: None
      • Tbay99Venture
        #5
        Tbay99Venture commented
        07-27-2011, 10:12 PM
        Editing a comment
        +10 on the problem aligning the pistons if they pop out. I did that once with a Sanden. My biggest problem comes back to keeping everything clean. He makes it look easy, for some of us that's 100% attention to keep things clean. I think 60degreesBelow0 mentioned some nitrogen flushing tips, maybe I'm confusing posts. That would be helpful to link from this.
        • bszopi
          #6
          bszopi commented
          07-29-2011, 05:57 PM
          Editing a comment
          Pics are now hosted here. Clicking on the pictures will show the full size version, if needed. I also split it up into multiple pages so make load time faster, as well as making it easier to follow.
          • davida1_hiwaay_net
            #7
            davida1_hiwaay_net commented
            05-17-2013, 12:37 PM
            Editing a comment
            Thanks for hosting the pictures here! My home computer has just a limited number of connections it can handle.
