V5 A/C compressor teardown / re-seal...

Collapse
X
Collapse
  •
  • Page 3

  • V5 A/C compressor tear down / re-seal...

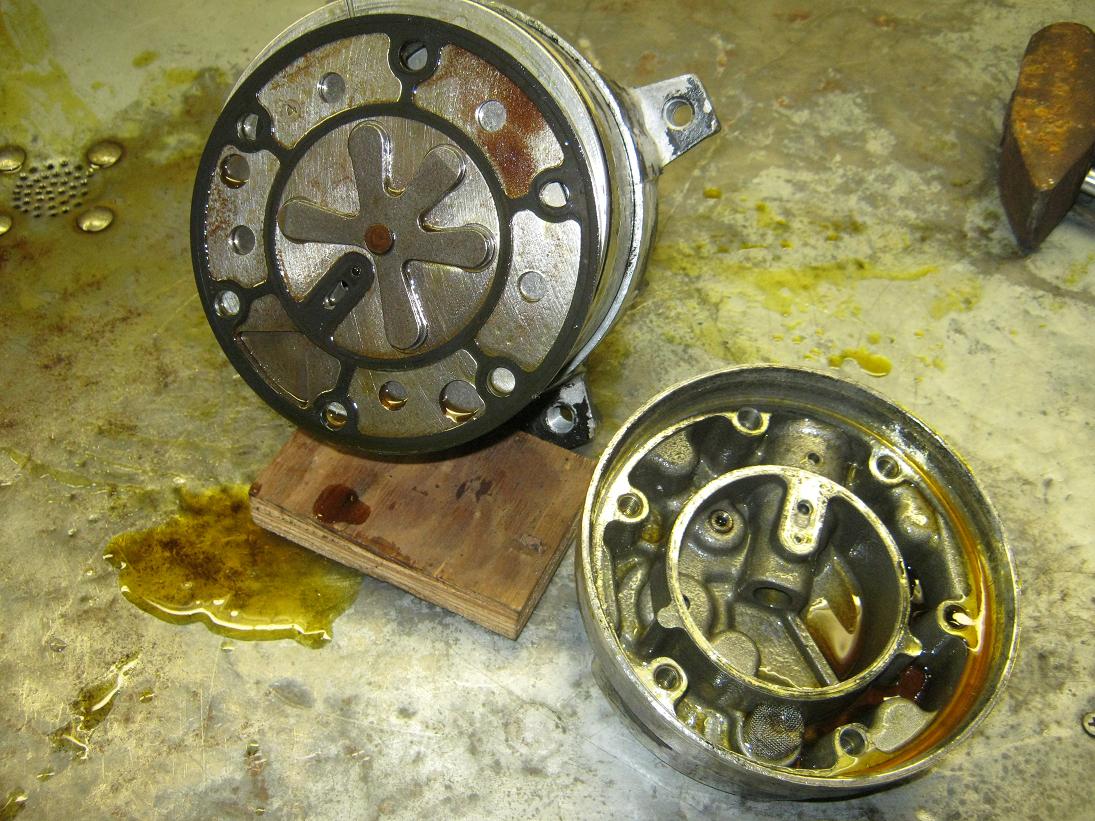

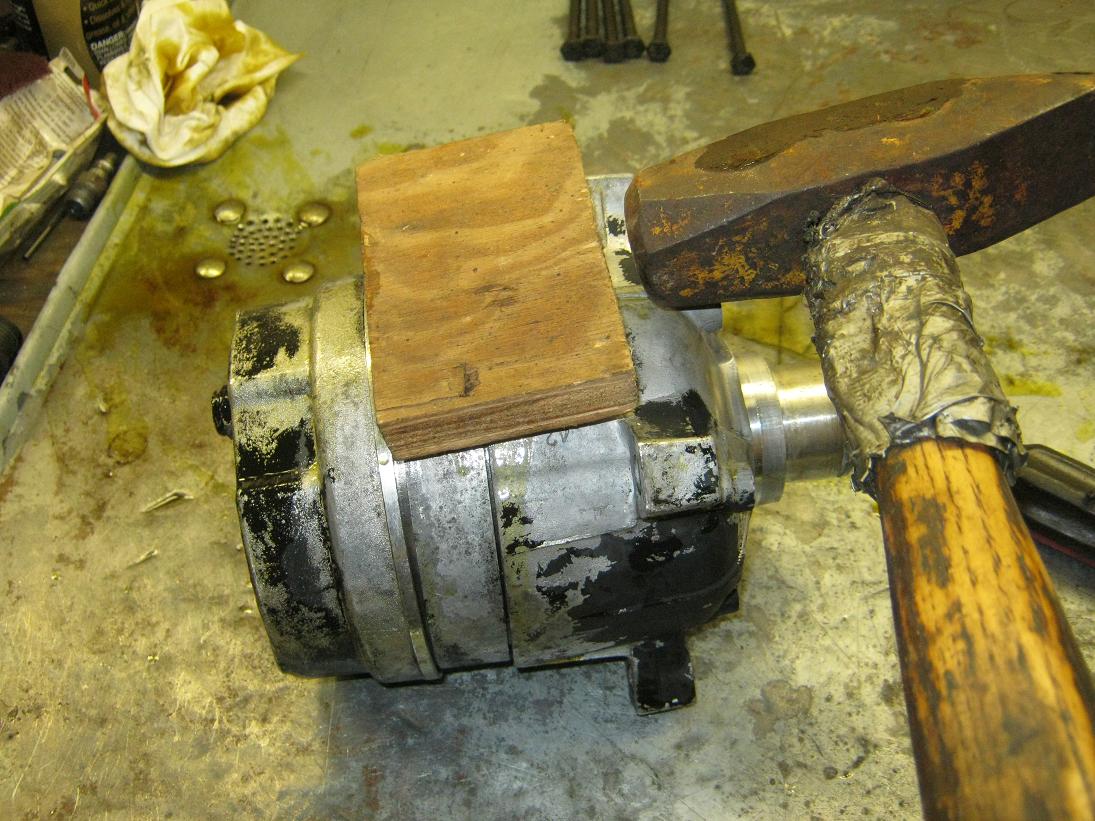

    Use a soft hammer (or block of wood) and drive off the rear housing.
    Click image for larger version Name: V5_d&a_ (16).jpg Views: 1 Size: 169.5 KB ID: 424811

    Click image for larger version Name: V5_d&a_ (17).jpg Views: 1 Size: 192.3 KB ID: 424812

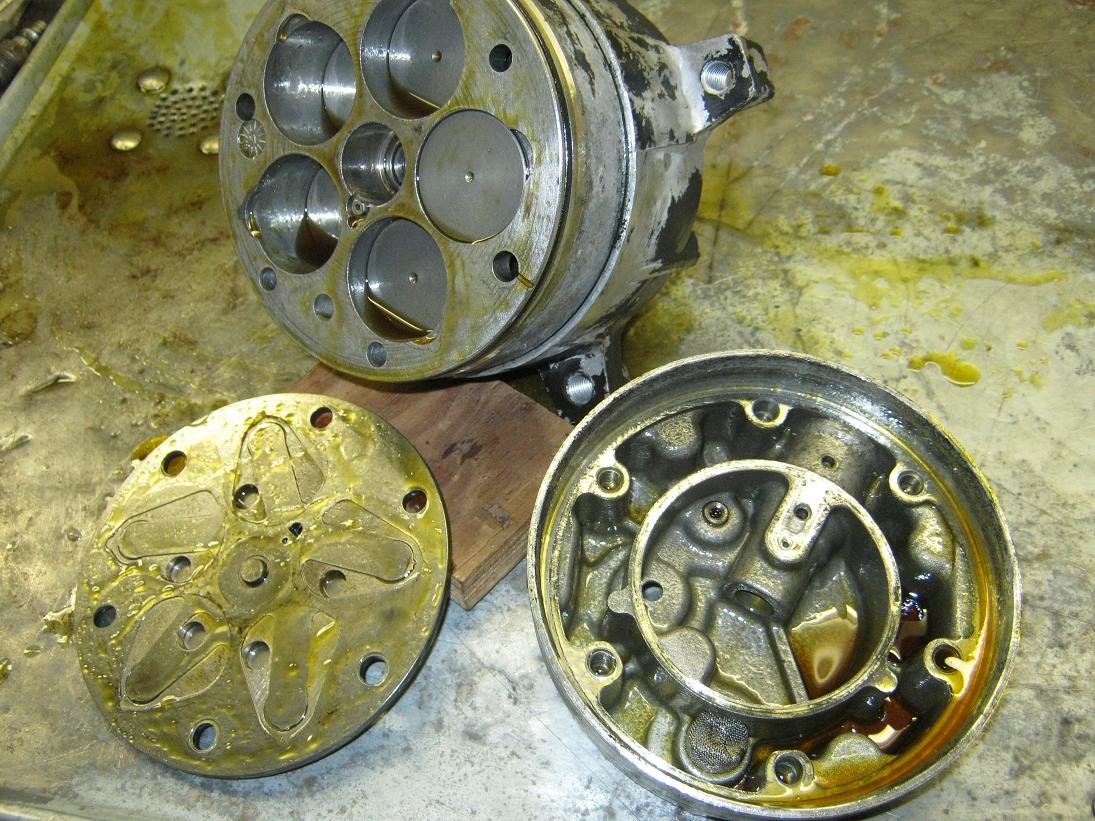

    Remove the valve plate and inlet reeds.
    Click image for larger version Name: V5_d&a_ (18).jpg Views: 1 Size: 194.8 KB ID: 424813

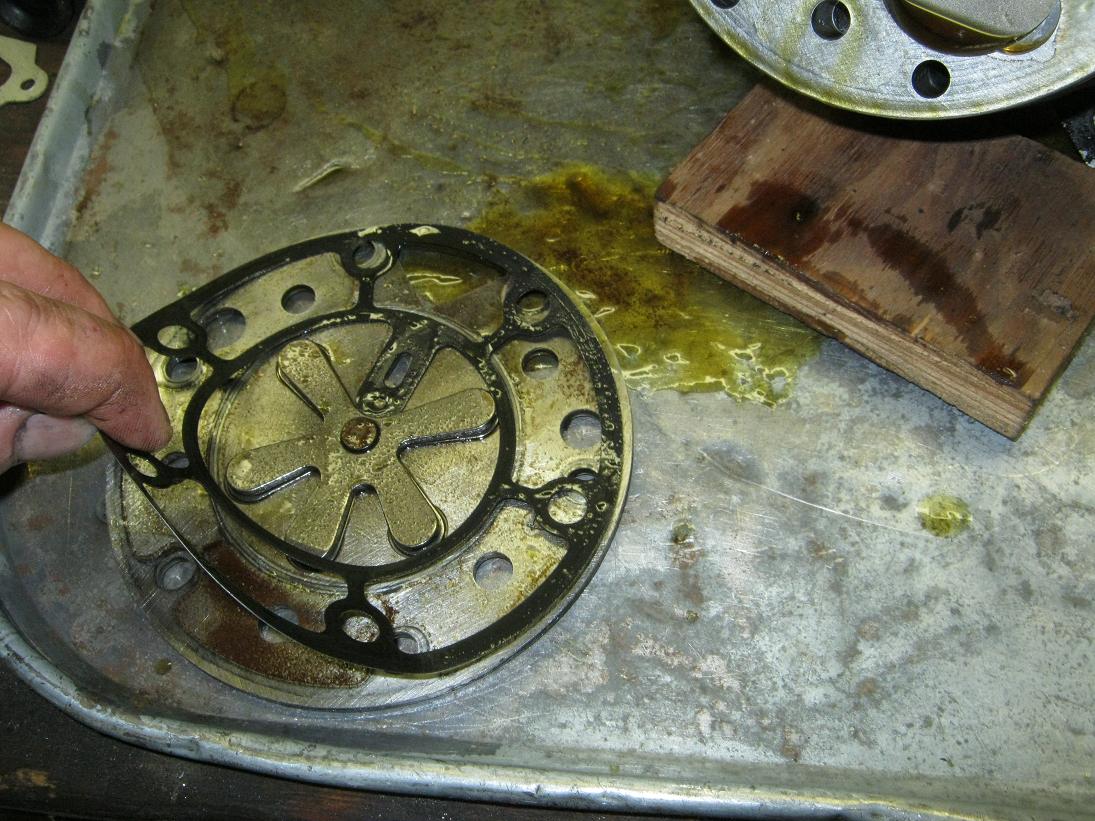

    Take the old gasket off the valve plate.
    Click image for larger version Name: V5_d&a_ (19).jpg Views: 1 Size: 180.7 KB ID: 424814

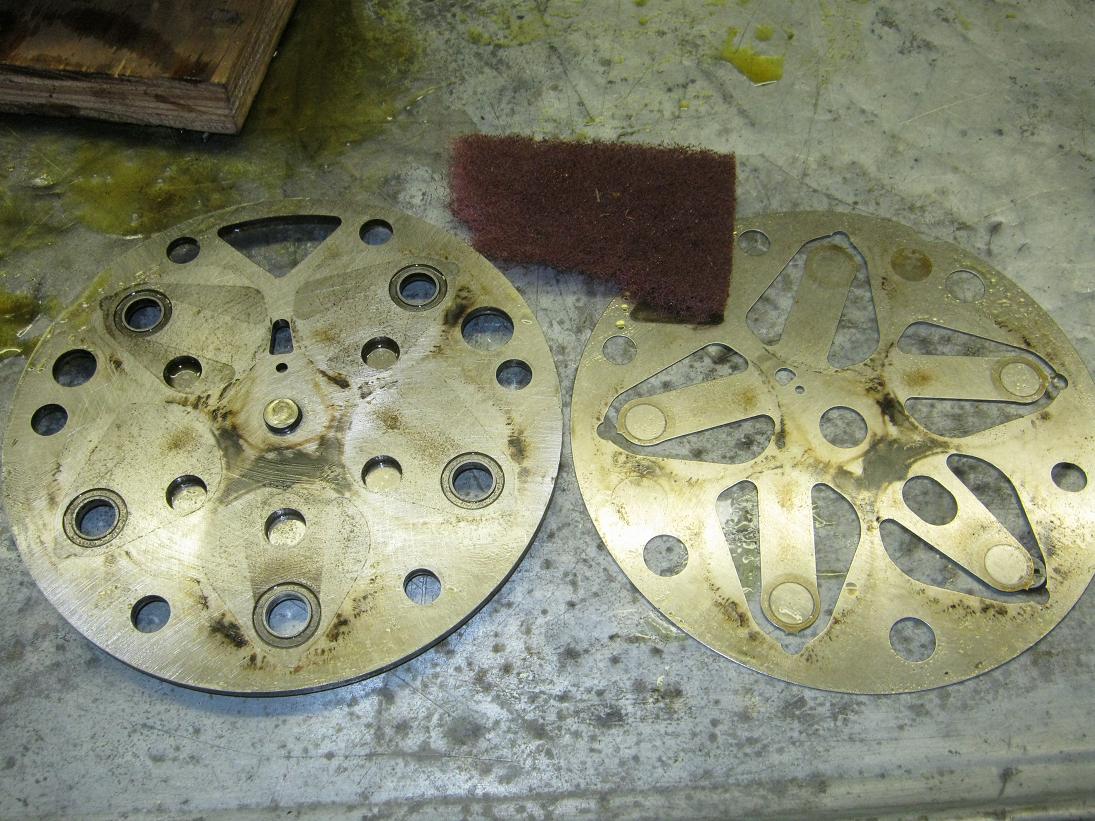

    Clean the valve plate and reed by hand with red scotch-brite and brake cleaner.
    Click image for larger version Name: V5_d&a_ (20).jpg Views: 1 Size: 185.1 KB ID: 424815

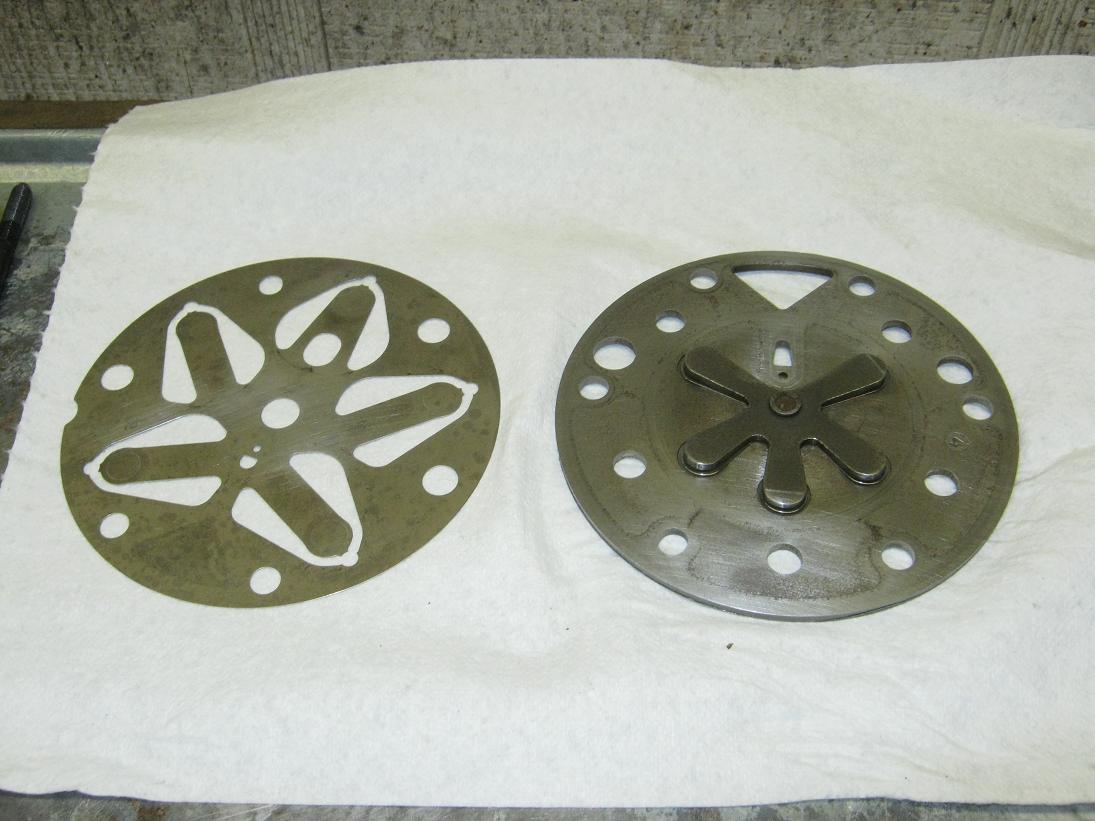

    Place them in a clean place. Cleanliness is CRITICAL to this success.
    Click image for larger version Name: V5_d&a_ (21).jpg Views: 1 Size: 109.8 KB ID: 424816
    ← Page 2
    Page 4 →
    Tags: None
    • Tbay99Venture
      #5
      Tbay99Venture commented
      07-27-2011, 11:12 PM
      Editing a comment
      +10 on the problem aligning the pistons if they pop out. I did that once with a Sanden. My biggest problem comes back to keeping everything clean. He makes it look easy, for some of us that's 100% attention to keep things clean. I think 60degreesBelow0 mentioned some nitrogen flushing tips, maybe I'm confusing posts. That would be helpful to link from this.
    • bszopi
      #6
      bszopi commented
      07-29-2011, 06:57 PM
      Editing a comment
      Pics are now hosted here. Clicking on the pictures will show the full size version, if needed. I also split it up into multiple pages so make load time faster, as well as making it easier to follow.
    • davida1_hiwaay_net
      #7
      davida1_hiwaay_net commented
      05-17-2013, 01:37 PM
      Editing a comment
      Thanks for hosting the pictures here! My home computer has just a limited number of connections it can handle.
