V5 A/C compressor teardown / re-seal...

Collapse
X
Collapse
  •
  • Page 4

  • V5 A/C compressor tear down / re-seal...

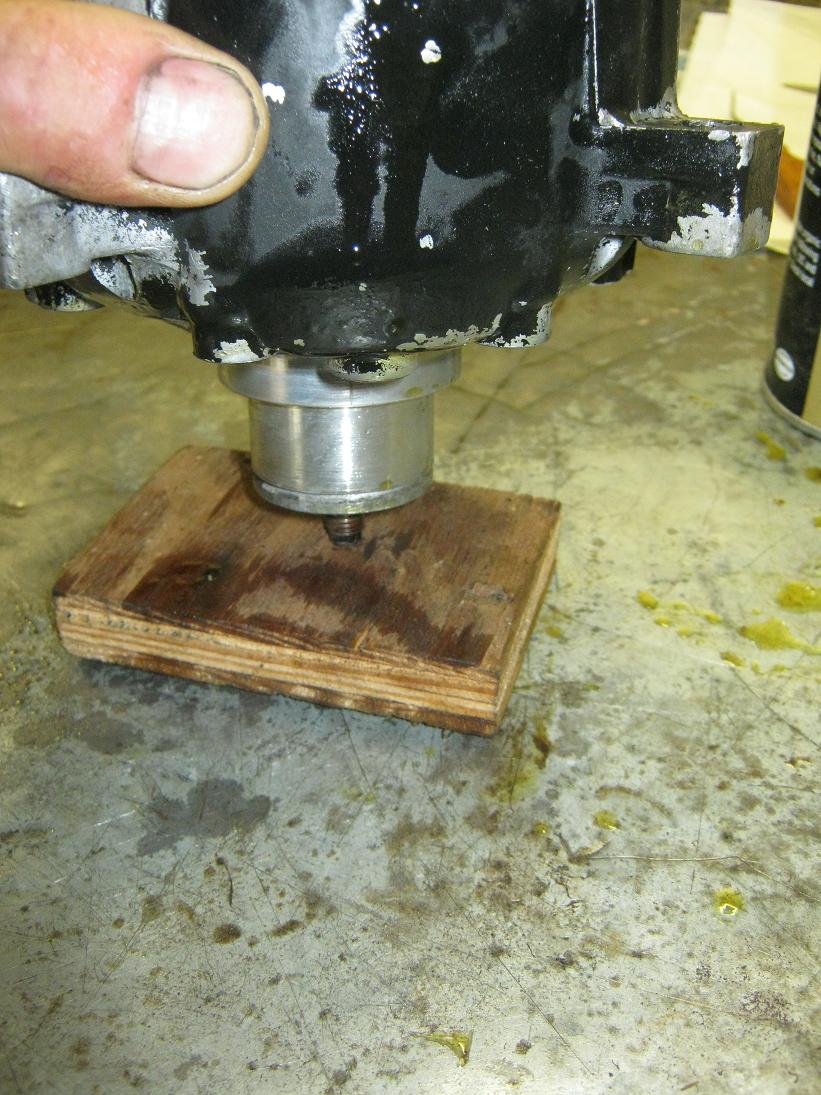

    Brace the shaft on a block of wood, then drive off the front housing by hammering down on the mounting ears.
    Click image for larger version Name: V5_d&a_ (22).jpg Views: 1 Size: 162.1 KB ID: 424817

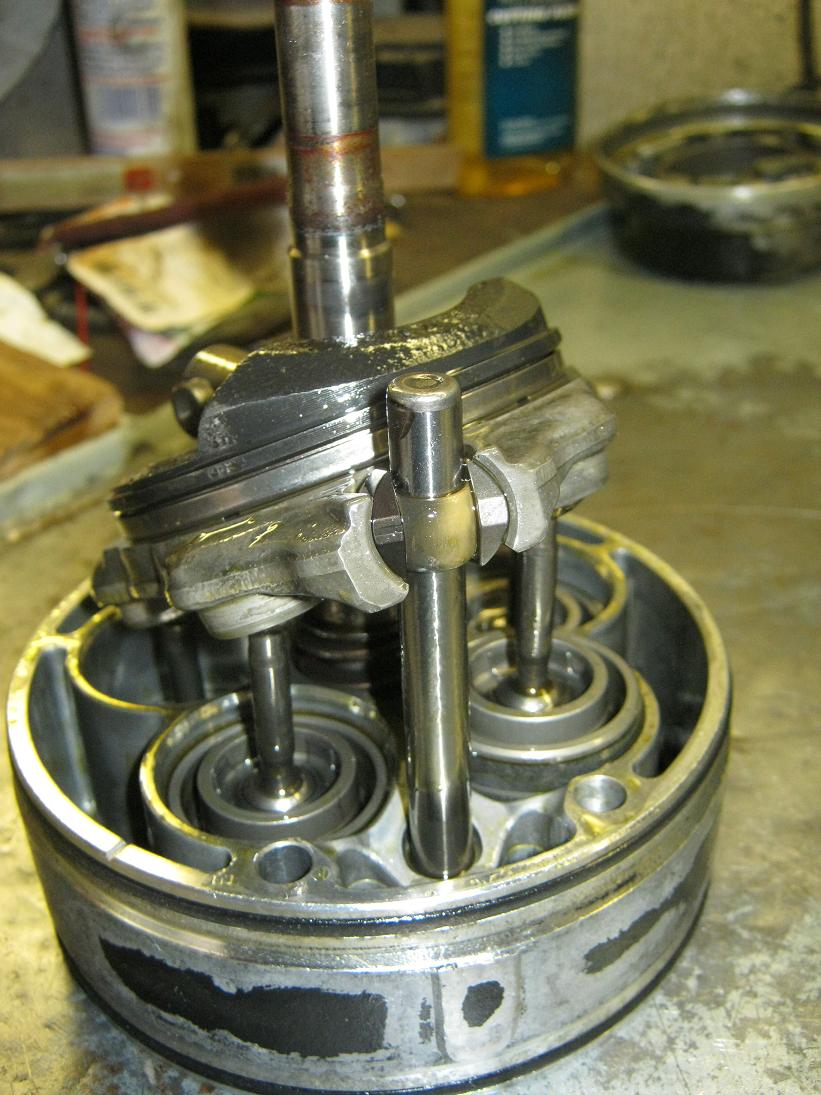

    Be careful the shaft doesn't pull out of the barrel and rotating assembly. If this happens, all the pistons will pop out and it will be a pain in the butt to get it all back together.
    Click image for larger version Name: V5_d&a_ (23).jpg Views: 1 Size: 178.9 KB ID: 424818

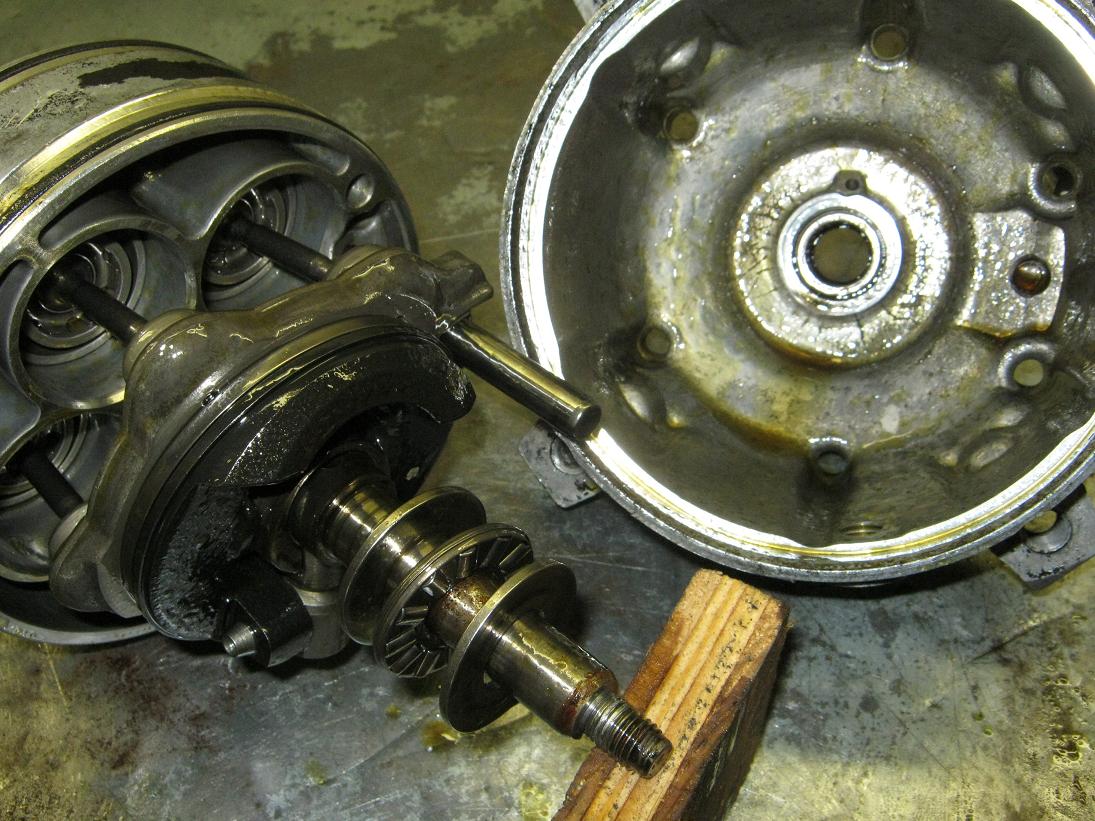

    Note the thrust bearing and thrust races.
    Click image for larger version Name: V5_d&a_ (24).jpg Views: 1 Size: 175.6 KB ID: 424819

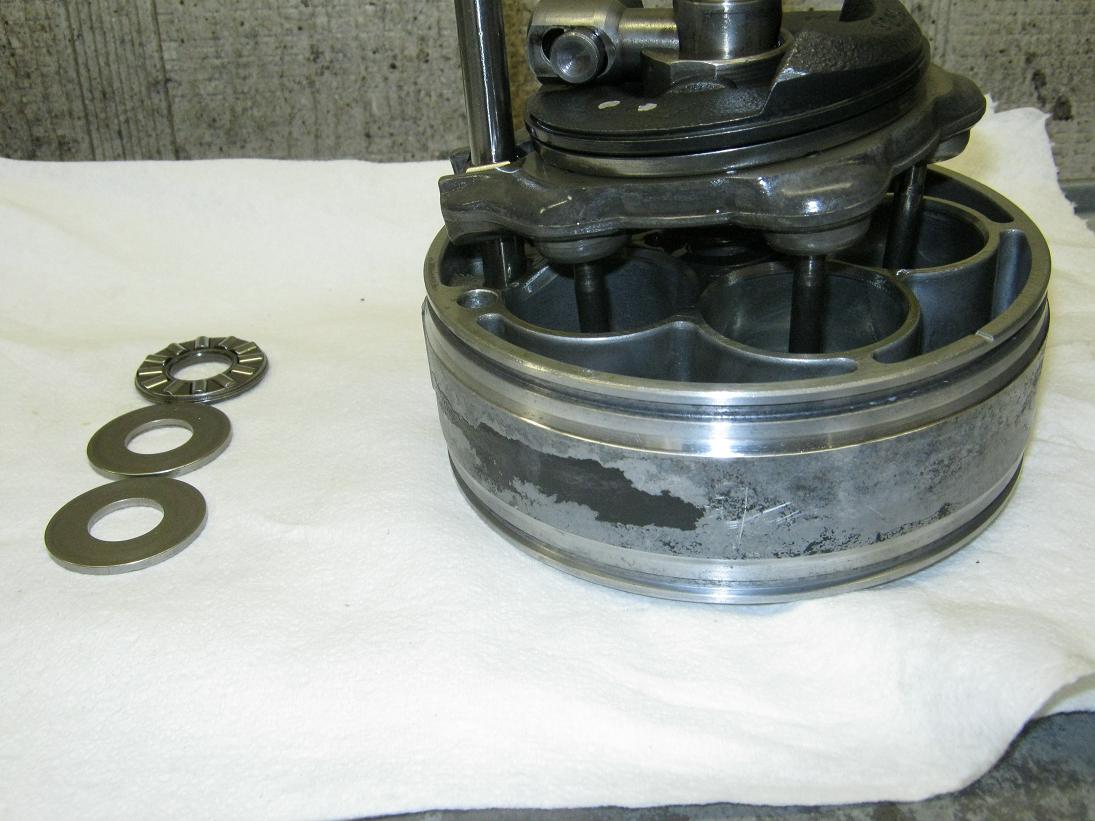

    The two o-rings on the barrel housing are the ones that were leaking on this compressor.
    Click image for larger version Name: V5_d&a_ (25).jpg Views: 1 Size: 137.0 KB ID: 424820

    Clean the o-ring grooves very thoroughly and carefully. Place barrel and rotating assembly in a clean place. Do not allow it to get dirty or it will be irreparably damaged.
    Click image for larger version Name: V5_d&a_ (28).jpg Views: 1 Size: 118.3 KB ID: 424821

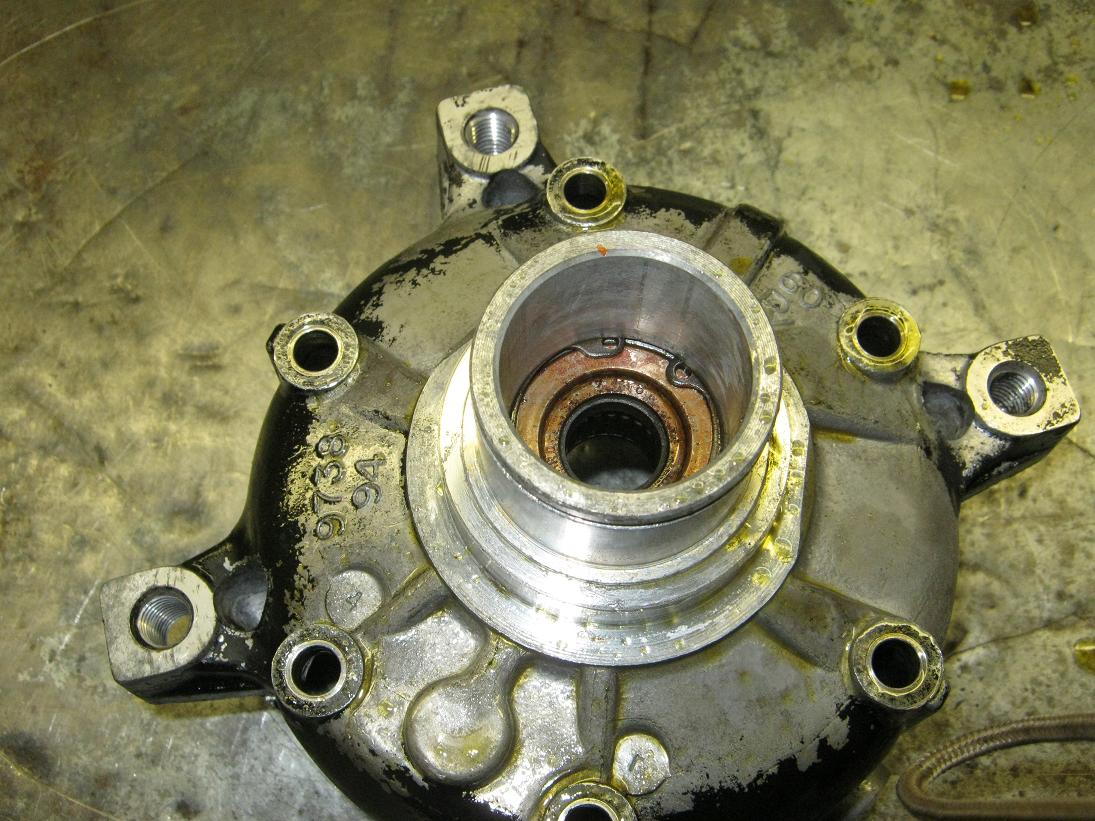

    Now, remove the snap ring, shaft seal, and o-ring.
    Click image for larger version Name: V5_d&a_ (29).jpg Views: 1 Size: 172.1 KB ID: 424822
    ← Page 3
    Page 5 →
    Tags: None
    • Tbay99Venture
      #5
      Tbay99Venture commented
      07-27-2011, 11:12 PM
      Editing a comment
      +10 on the problem aligning the pistons if they pop out. I did that once with a Sanden. My biggest problem comes back to keeping everything clean. He makes it look easy, for some of us that's 100% attention to keep things clean. I think 60degreesBelow0 mentioned some nitrogen flushing tips, maybe I'm confusing posts. That would be helpful to link from this.
    • bszopi
      #6
      bszopi commented
      07-29-2011, 06:57 PM
      Editing a comment
      Pics are now hosted here. Clicking on the pictures will show the full size version, if needed. I also split it up into multiple pages so make load time faster, as well as making it easier to follow.
    • davida1_hiwaay_net
      #7
      davida1_hiwaay_net commented
      05-17-2013, 01:37 PM
      Editing a comment
      Thanks for hosting the pictures here! My home computer has just a limited number of connections it can handle.
